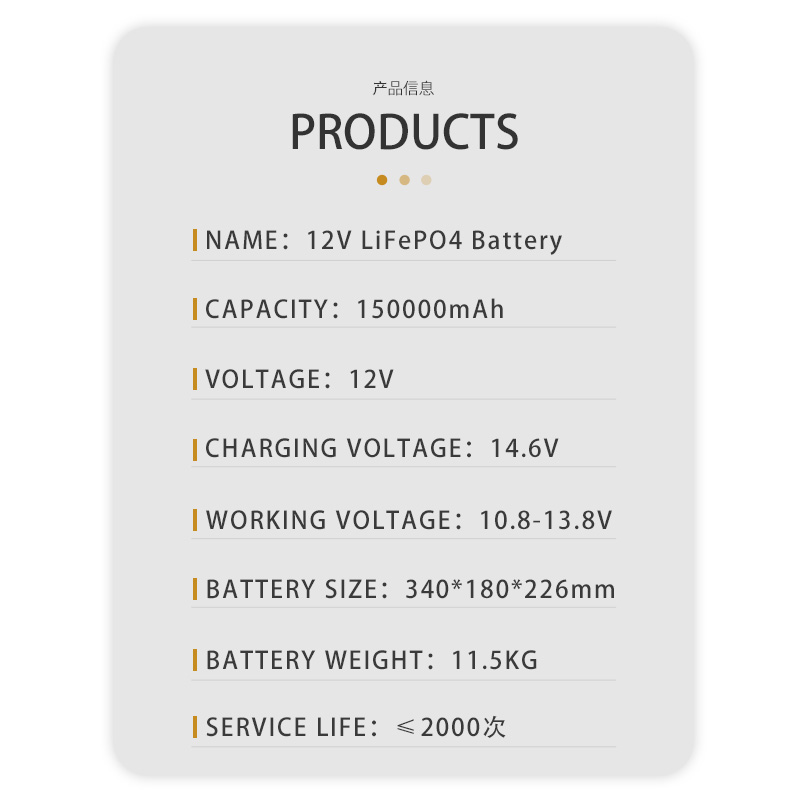

Descriptions:

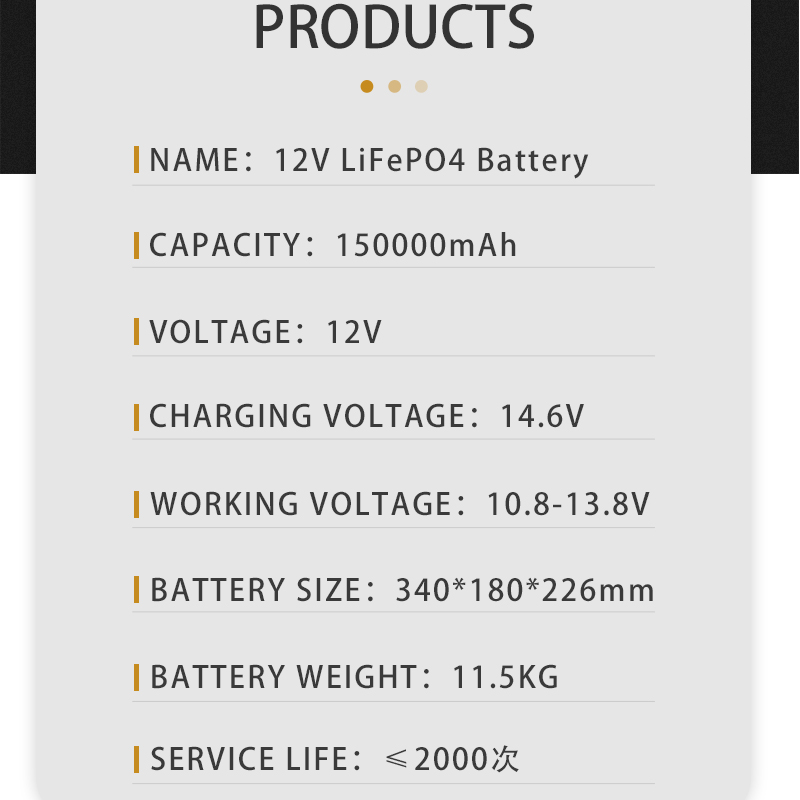

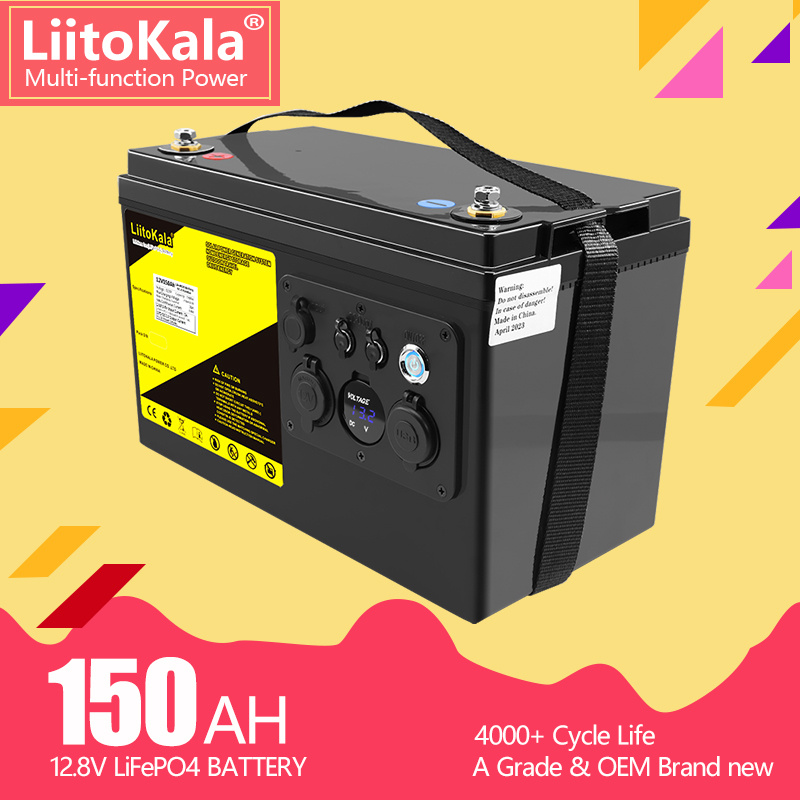

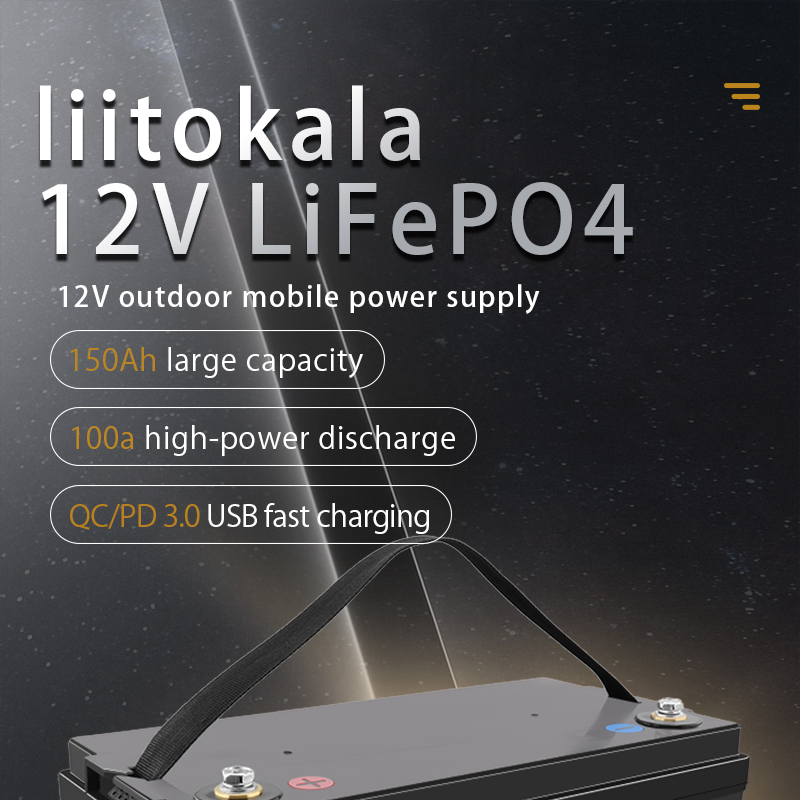

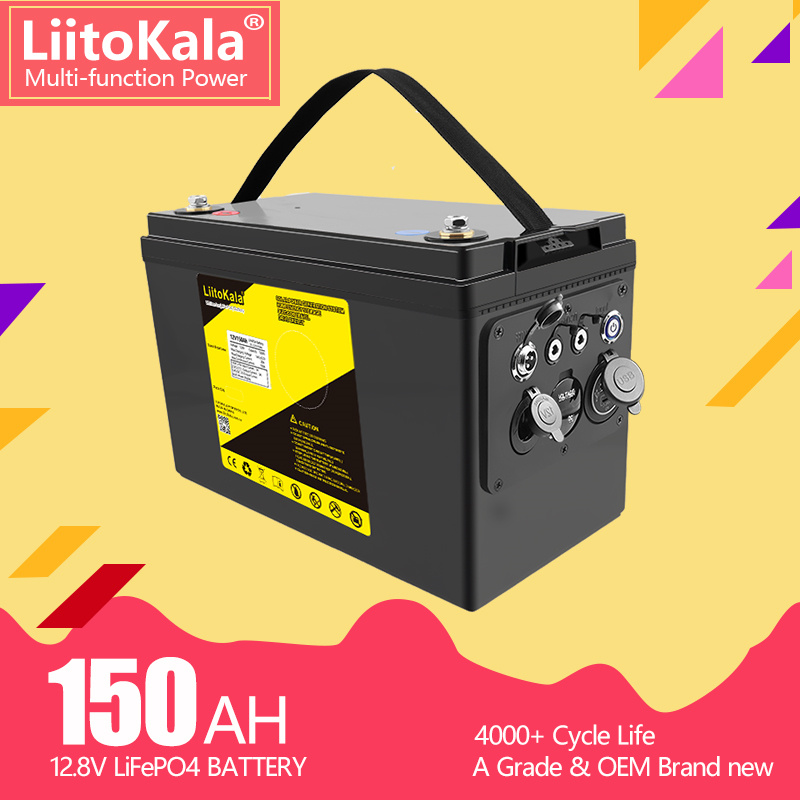

Model: NEW-DC-12V150Ah
Nominal voltage : 12.8V
Nominal capacity : 130-150Ah（Capacity errors may occur if different detection methods are used.）
Maximum charging current: 100A
Recommended charging current：20A
Continuous discharge current: 100A
Instantaneous discharge current: 300A(3S)
Service life:More than 4000 times, DOD at 80%
Charging temperature : 0~45 ℃
Discharge temperature : -20 ~ 60 ℃
Storage temperature : -20 ~ 45 ℃
Weight : 14kgs about

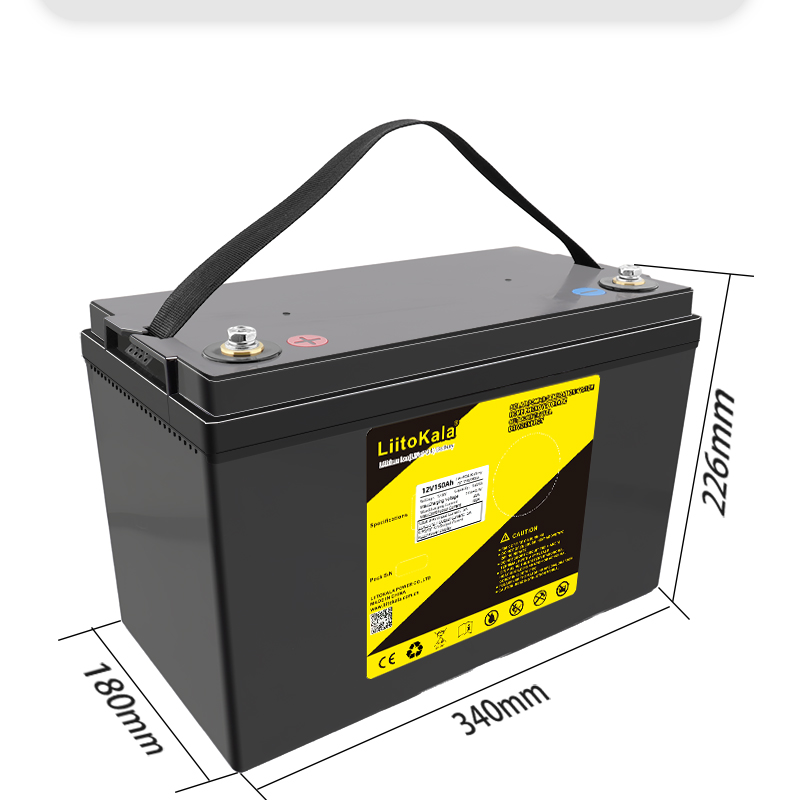

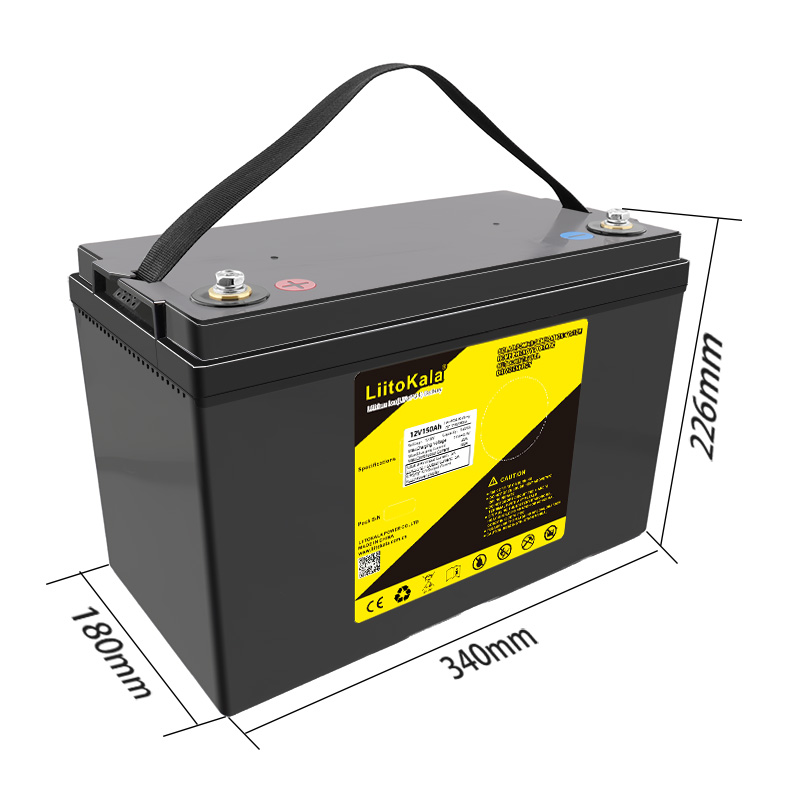

Size: 340*180*226mm / Customized
Operating voltage range: 10.0V-14.6V
Overcharge protection voltage : 14.6V + 0.05V
Over discharge protection voltage : 10.0V + 0.05V
Battery temperature protection: 70℃plusmn5℃
Output and parameters: high current positive / negative connecting column (red positive electrode, black negative pole);
Battery storage period: 90% power (6 months)
Battery warranty: 12 months (free warranty)

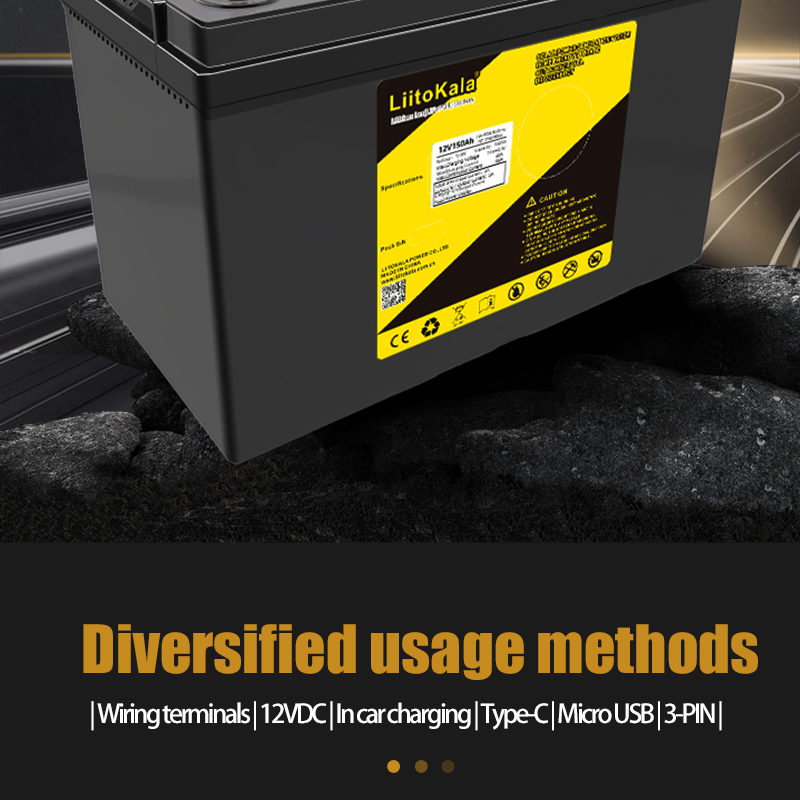

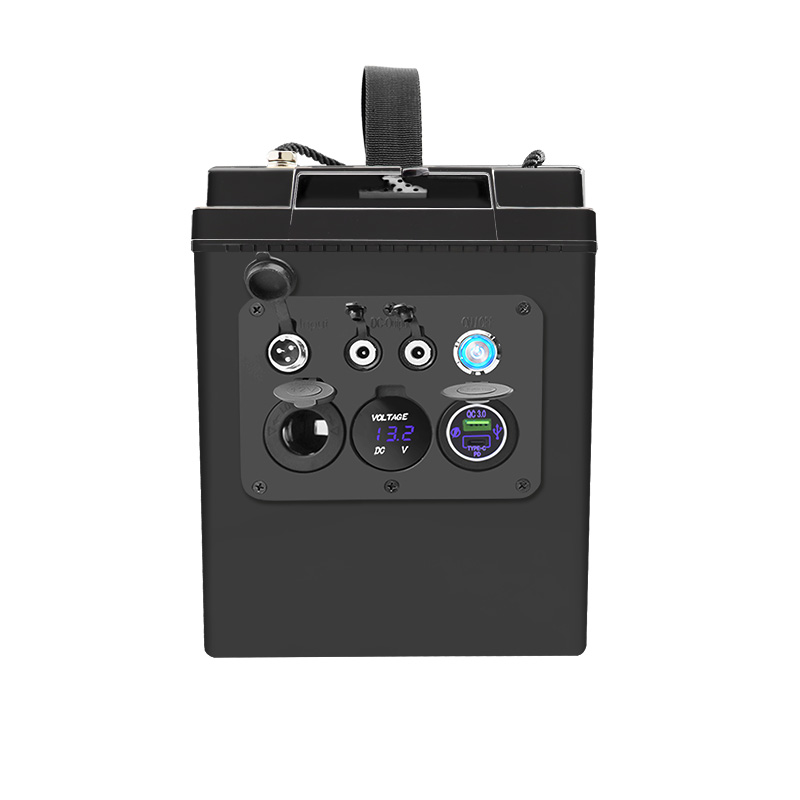

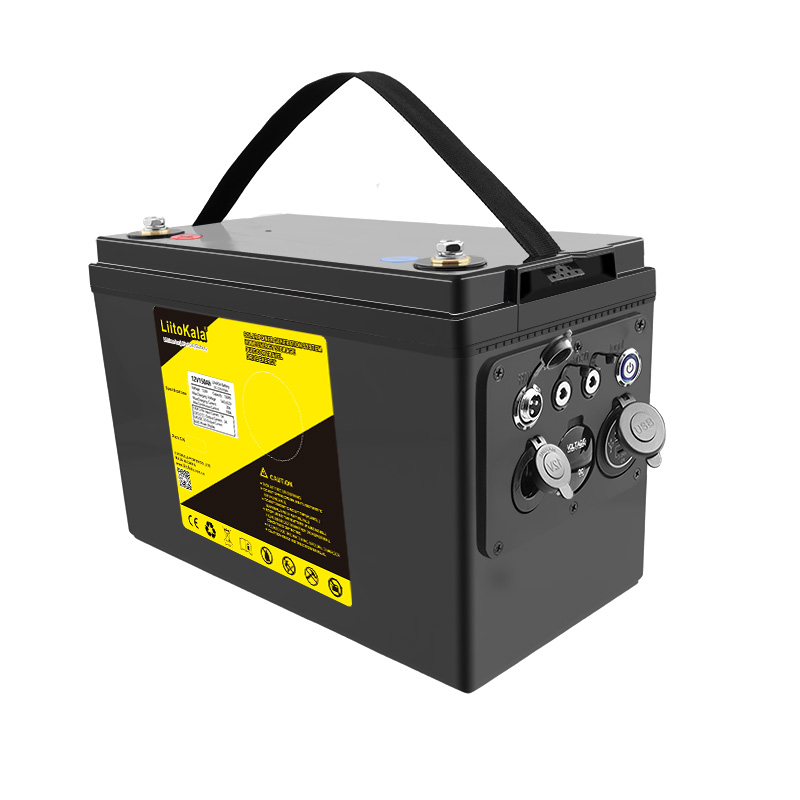

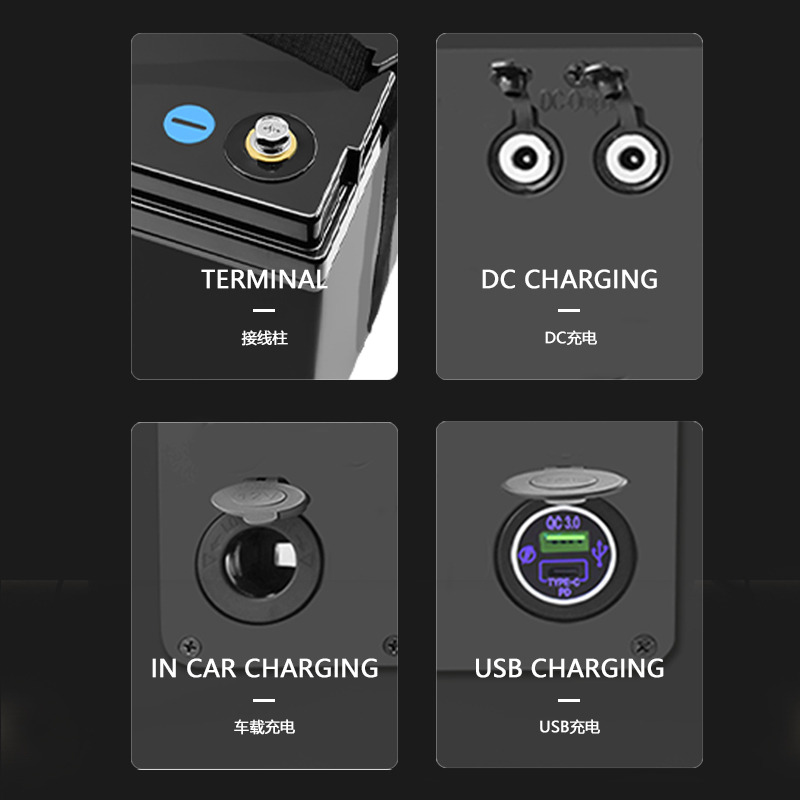

Built-in functions:

1. LED Power Display

2. With switch

3. XLR 3PIN Input current：14.6V5A

4.12V on-board function

5. Ouput current：DC5.5*2.1/2 5A，USB3.0/1 18W， PD-Type C 3.0：18W

Package includes:

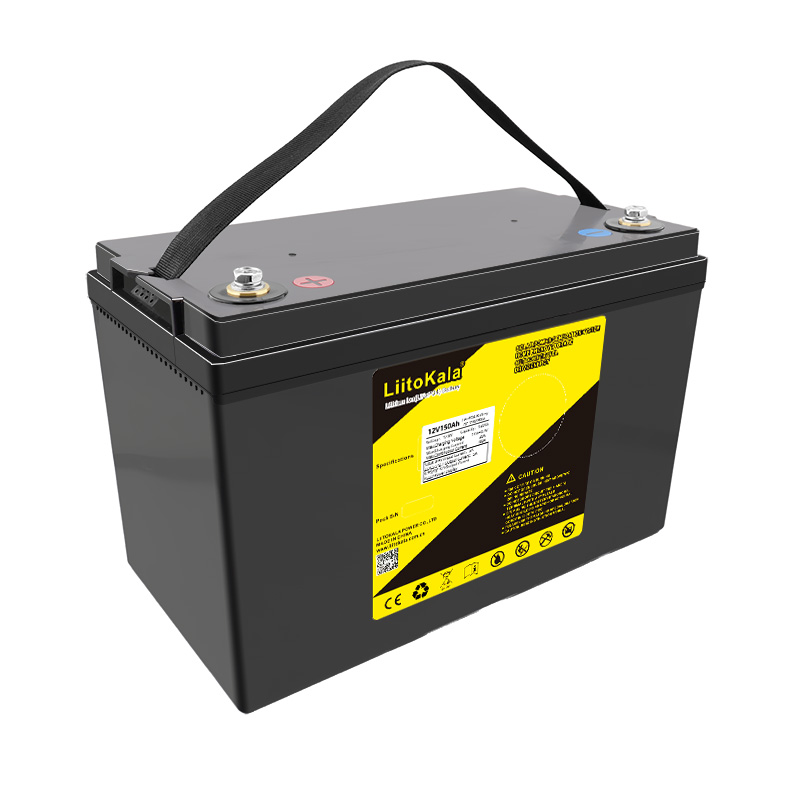

1, 12V 150Ah High capacity LiFePo4 Battery pack with build-in BMS, case.
2, 14.6v 10A*1 battery charger (EU/US/UK/AU plug, automatically switch according to country)

Charging Tips:

Use LiFePO4 battery charger to maximise the capacity
When charging with solar, select B04 mode on solar regulator

Product advantages:

Easy to carry, light weight, high capacity, high release platform, long working hours, long life, safety and environmental protection，Series connection (withstand voltage 48V), Parallel connection (voltage must be consistent)

Application:

Electric Propelling Applications

● Engine Starting Battery
● Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
● Intellectual Robots
● Power tools: electric drills, toys

Energy Storage
● Solar-Wind Power
