LiItoKala Lii-CH4 Charger

Specifications :
Brand:LiitoKala
Model:Lii-CH4
Parameters:
1) Input power supply: USB 5.0V 2.0A（Type-C）
2) Output voltage:
DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-cd
3) Output current:
Li-ion/IMR/LiFePO4：（1000mA*2）（ 500mA*4）
NiMH/Nicd:（1000mA*2）（500mA*4）
4) Constant current/constant voltage, cut off 100mA;
5) Standbycurrent:<50mA;
6) Compatible battery types and models
Li-ion / IMR/LiFePO4: 26650，21700，20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA，SC, C

Product Detail

Description

Warning:
1. This charger can only charge cylindrical lithium-ion batteries (Li-ion-3.70V/3.80V), lithium iron phosphate batteries (LiFePO4 3.20V), and nickel hydrogen/nickel cadmium (Ni-MH/NiCd-1.20V) batteries,and 1.5V lithium-ion battery (4.2V to 1.5V);
2. Before use, please carefully refer to the instructions, and pay attention to the recommended charging current of the rechargeable battery. Do not charge beyond the recommended current;
3. Choose to use a 5.0V DC adapter, with a power supply current of not less than 2.0A (amperes);
4. The charger may generate heat during operation.Please keep it out of reach of children during charging;
5. When not in use, please unplug the power and take out the battery;
6. This product can only be used indoors at room temperature;
7. The testing data of this product is for reference only. Please refer to professional instruments for actual situations.

Description:

1. It adopts USB 5.0V 2.0A (minimum) input, intelligent charging for each slot and microcomputer management system;
2. The biggest highlight of this charger is the 1.5V lithium-ion battery (4.2V to 1.5V) charging;
3. Charging current: 0.50A /1.00A;
4.Charging current:
4.1Insert the battery.To change the charging current, press and hold the buttons 1-4 to select the charging current (500mA/1000mA);
4.2 Insert a 1.5V lithium-ion battery (4.2V to 1.5V), and the default charging current is 500mA, which cannot be selected.
5. The system can automatically recognize 3.70V lithium batteries, nickel hydrogen/nickel cadmium (1.20V)batteries, and 1.5V lithium-ion batteries. Press buttons 1-4 to manually select 3.20V lithium iron phosphate batteries and 3.80V lithium batteries (IMR);
6. It has a 0V voltage activation function, and cannot chargebatteries between 1.65-2.20V (but there is trickle charging with activation current);
8. It has multiple safety protection functions such as overcharging, over-discharging, short circuitand reverse connection, and can also automatically identify faulty batteries;
9. Charging mode: constant current and constant voltage.

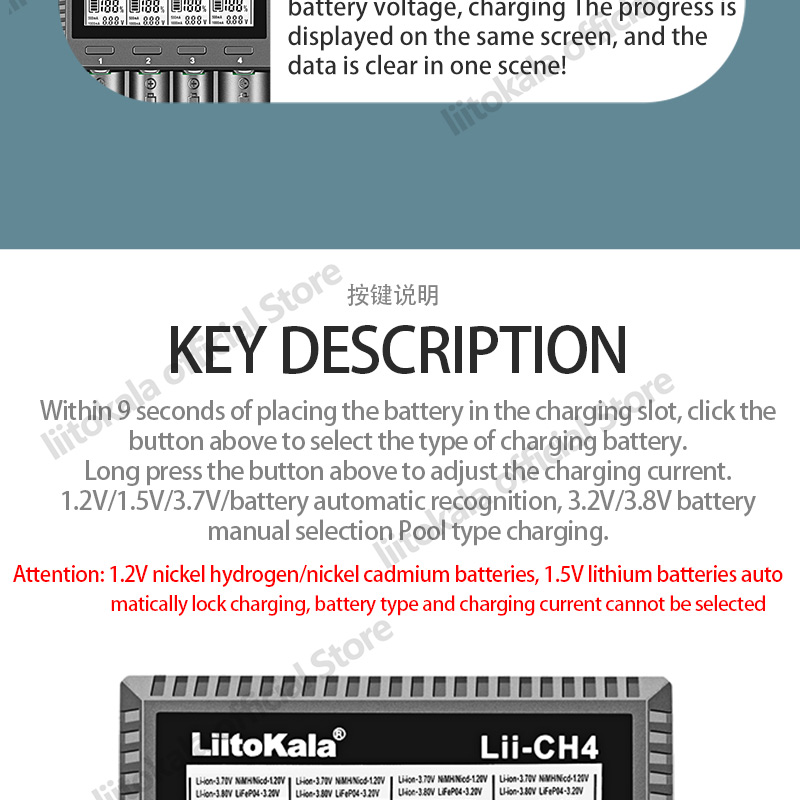

Kye and display:
1.1 Buttons 1-4 (function buttons): They are battery type selection buttons. Within 9 seconds after connecting to the power supply and placing the battery, click one of 1-4 buttons to select the type of rechargeable battery (Li-ion-3.70V, Li-ion-3.80V, LiFePO4-3.20V), but when charging nickel hydrogen/nickel cadmium (Ni-MH/NiCd-1.20V) batteries, other types cannot be selected. During charging, the type of rechargeable battery cannot be re-selected.

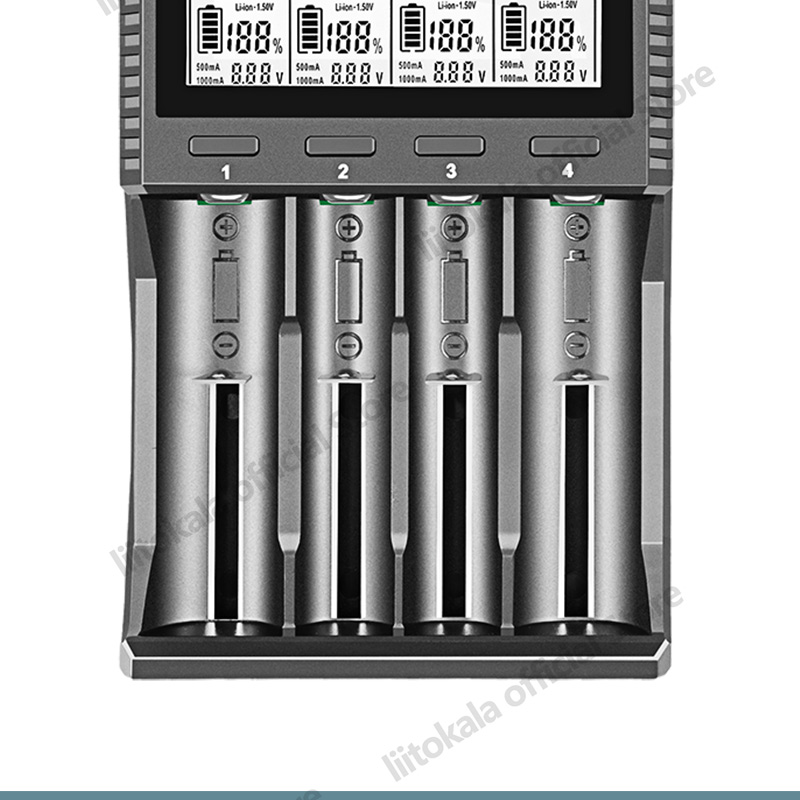

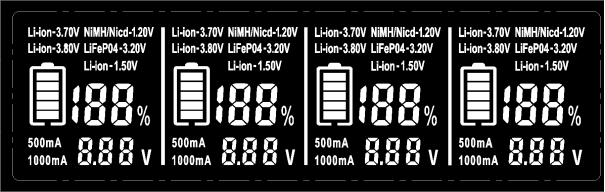

*LCD display diagram:

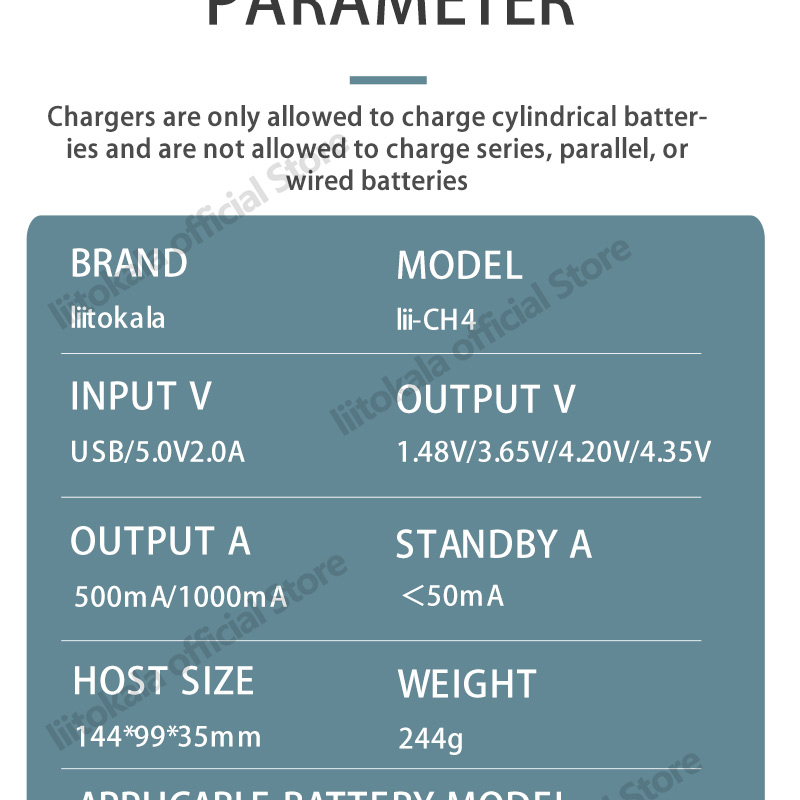

Parameters:
1. Input power supply: USB5.0V 2.0A
2. Output voltage: DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-cd
3. Output current:
Li-ion/IMR/LiFePO4: 1000mA*2 500mA*4
NiMH/Nicd: 1000mA*2 500mA*4
4. Constant current/constant voltage charging, cut-off current: 100mA;
5. Idle standby current:<50mA.

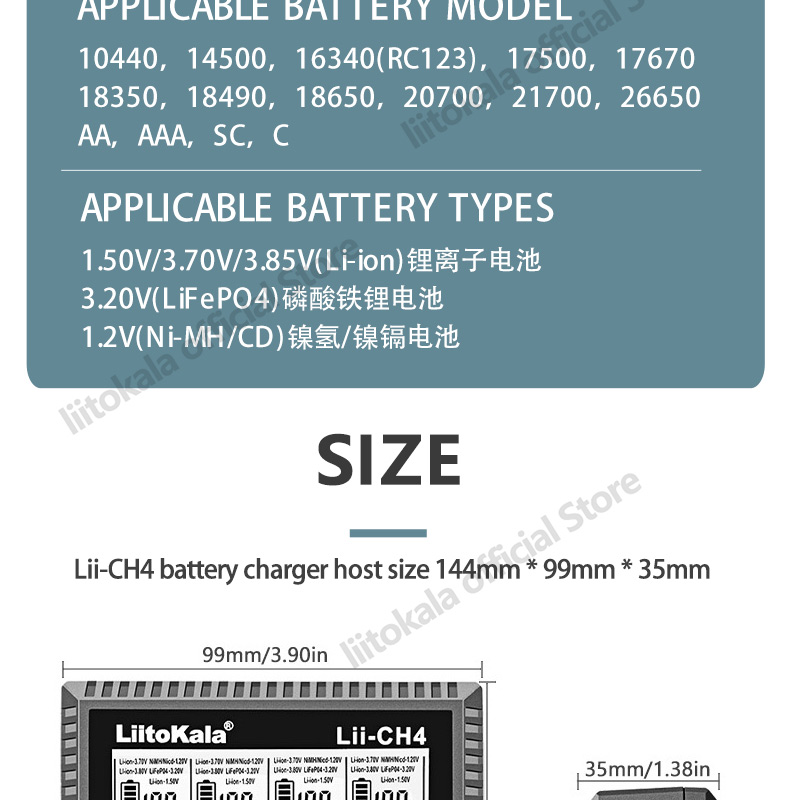

Compatible battery types and models
Li-ion / IMR/LiFePO4: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C

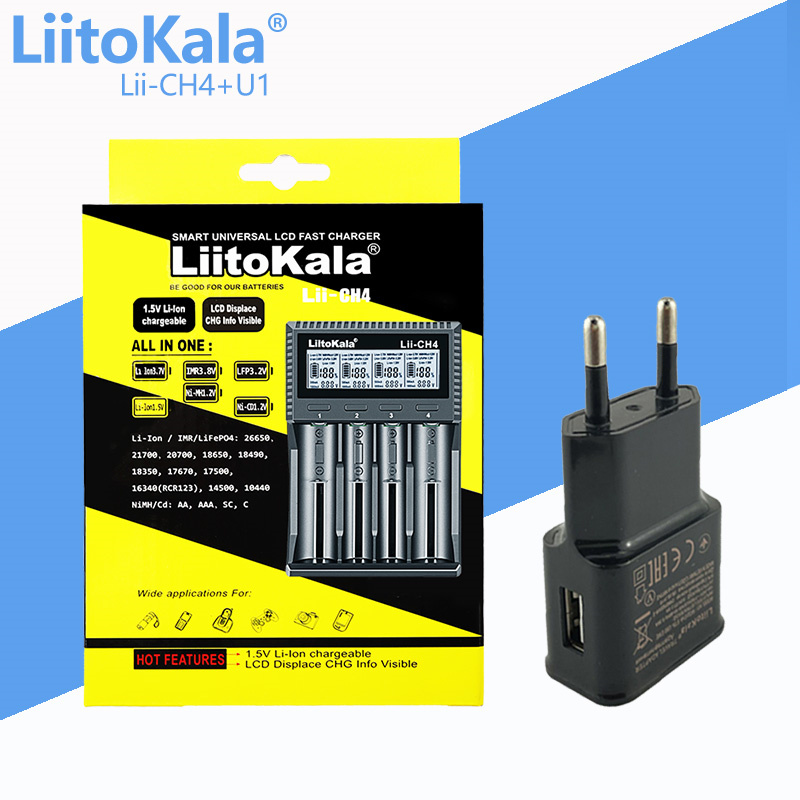

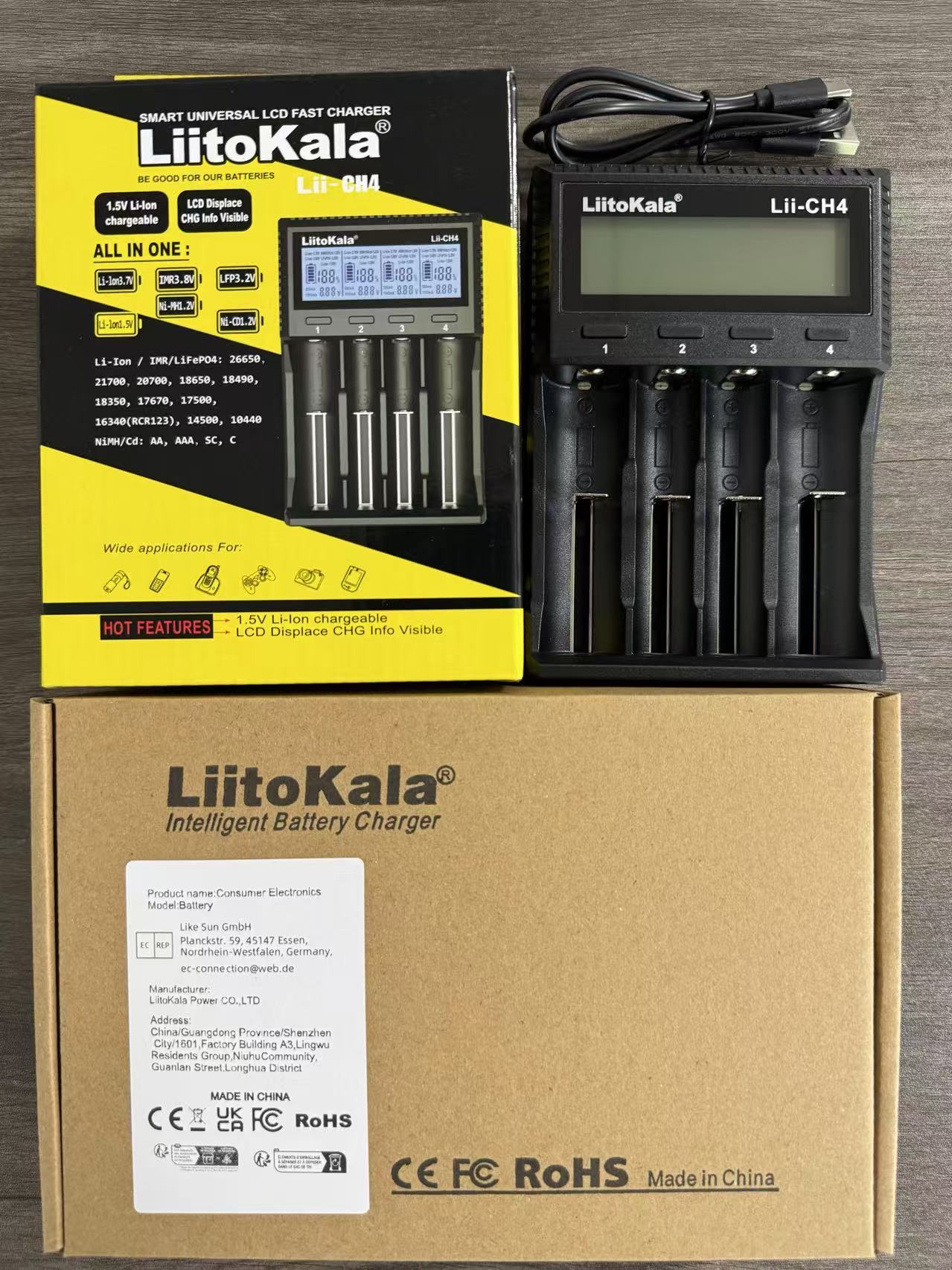

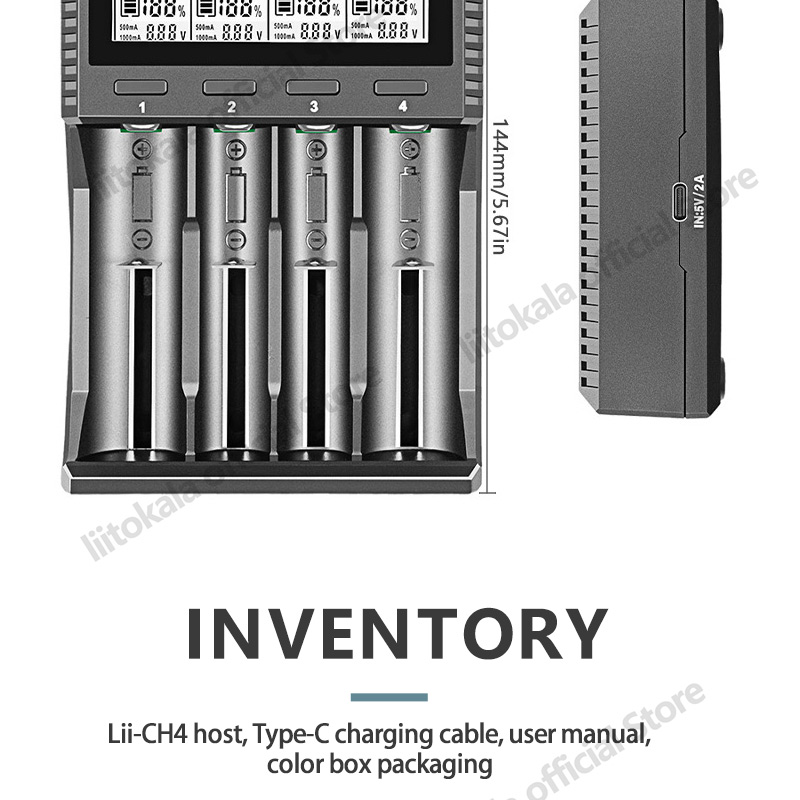

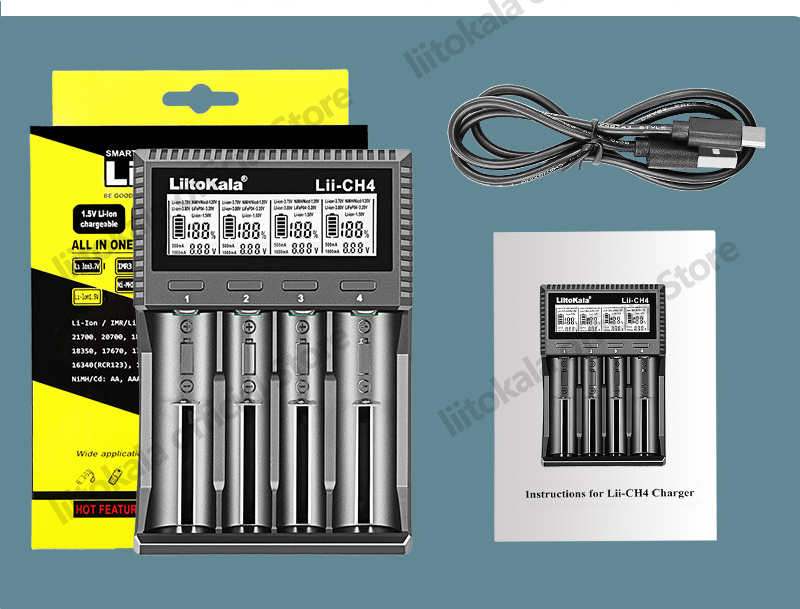

Packing list:

1 * LiitoKala Lii-CH4 Battery Charger
1 * USB charging cable
1 * User Manual (English & Chinese & Russian)
1 * Tracking no.

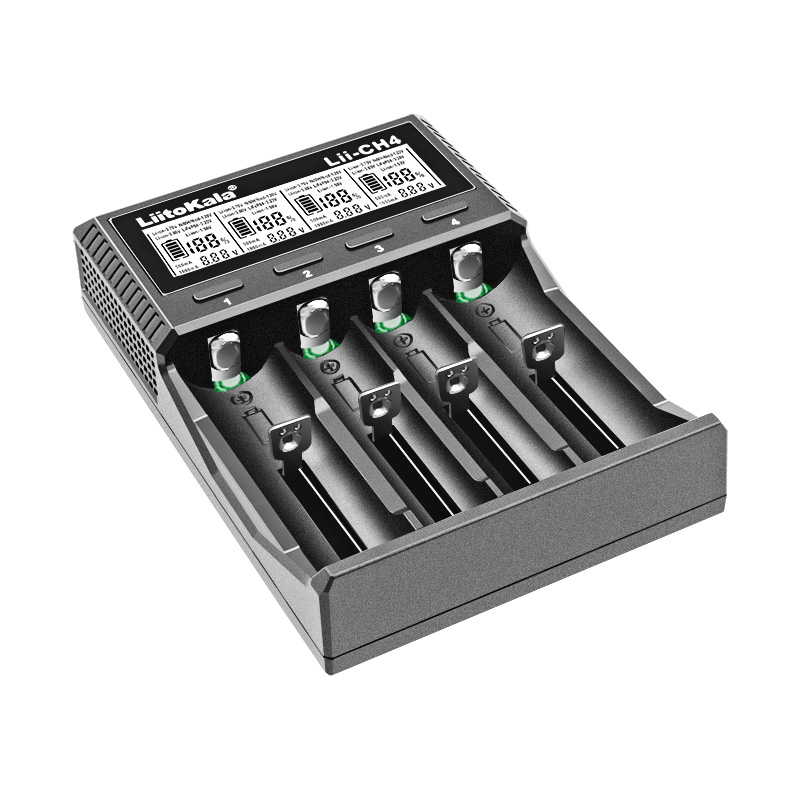

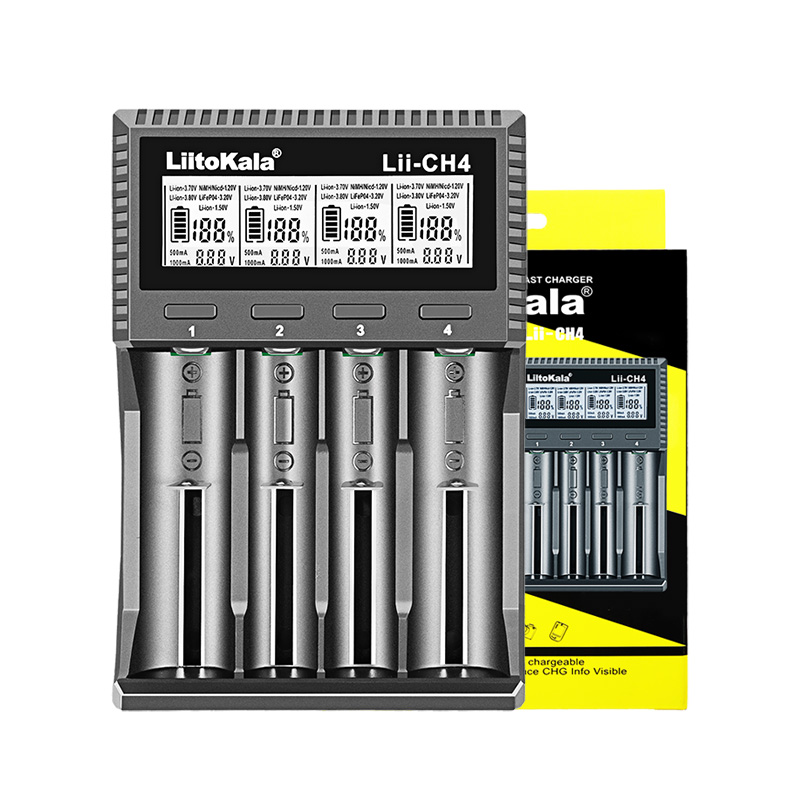

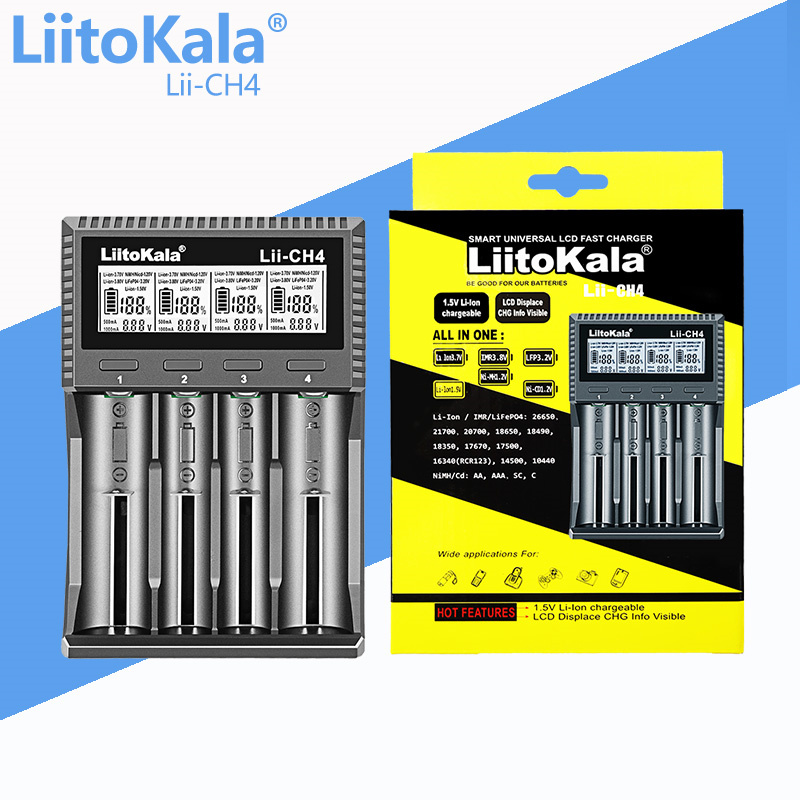

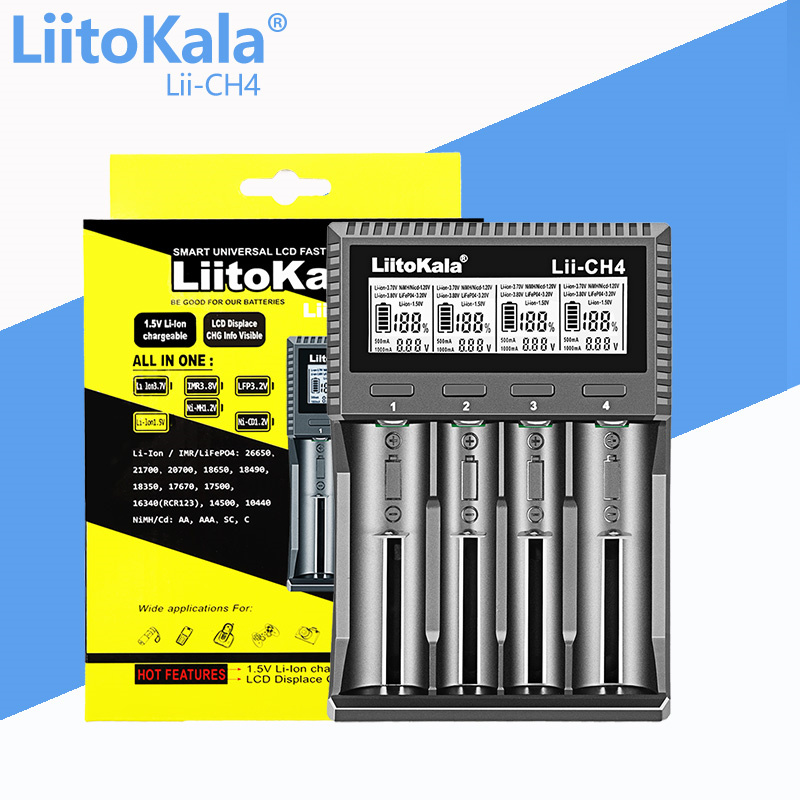

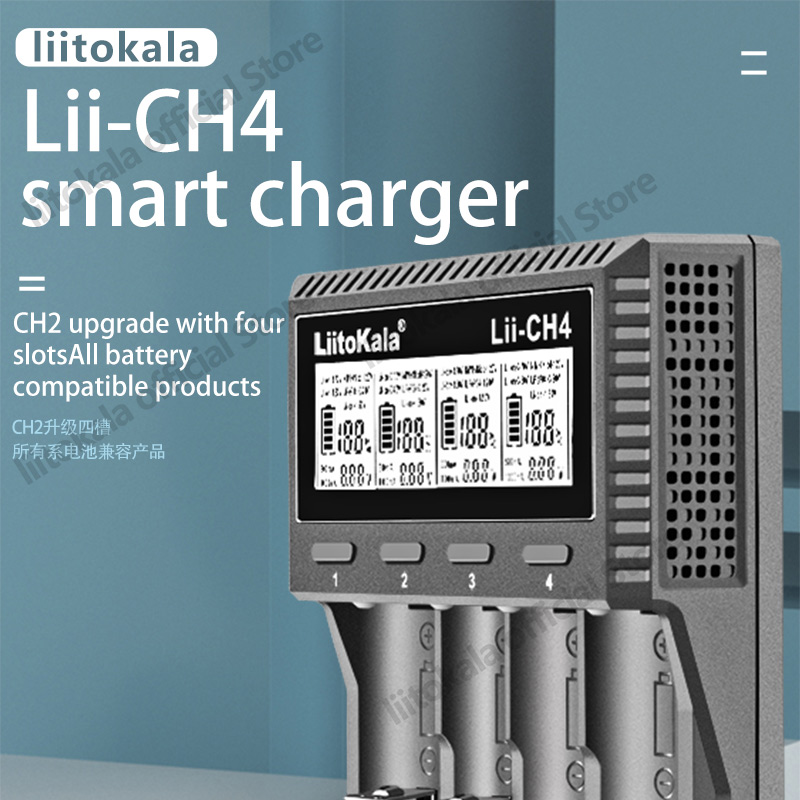

Photo display
