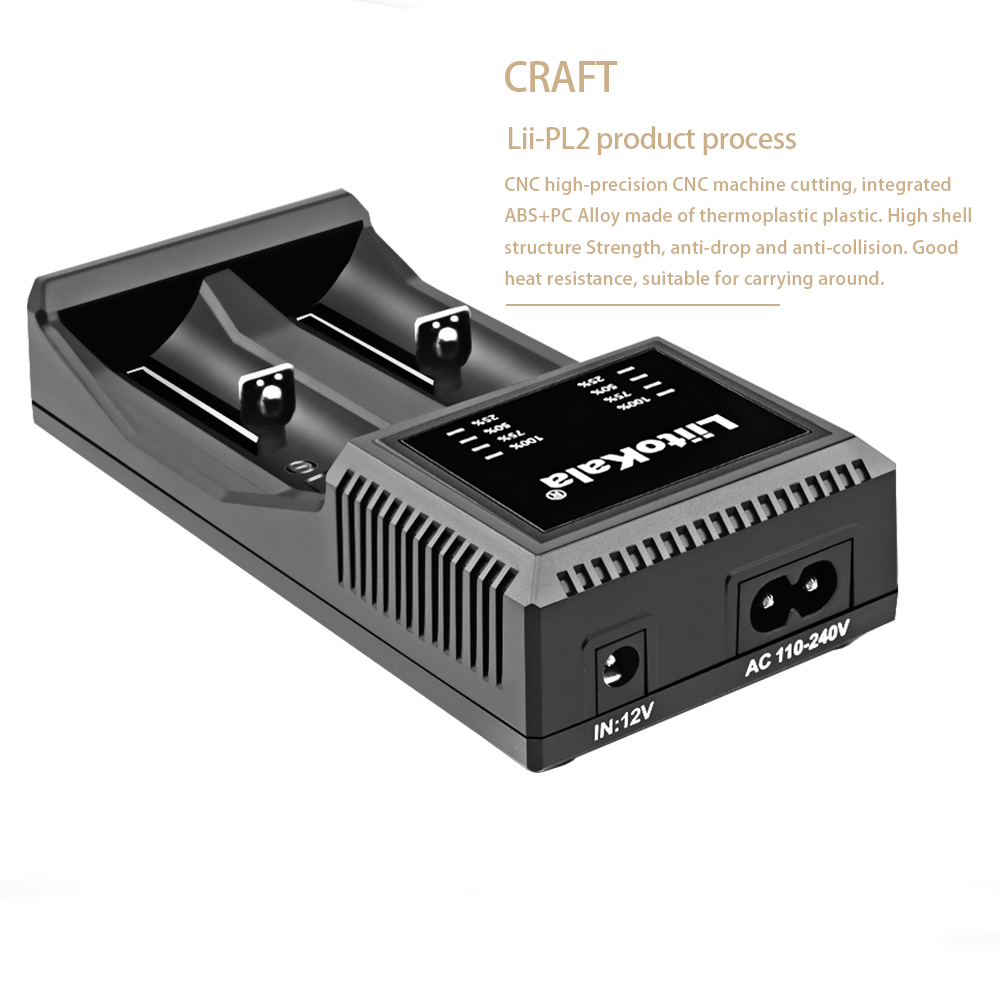

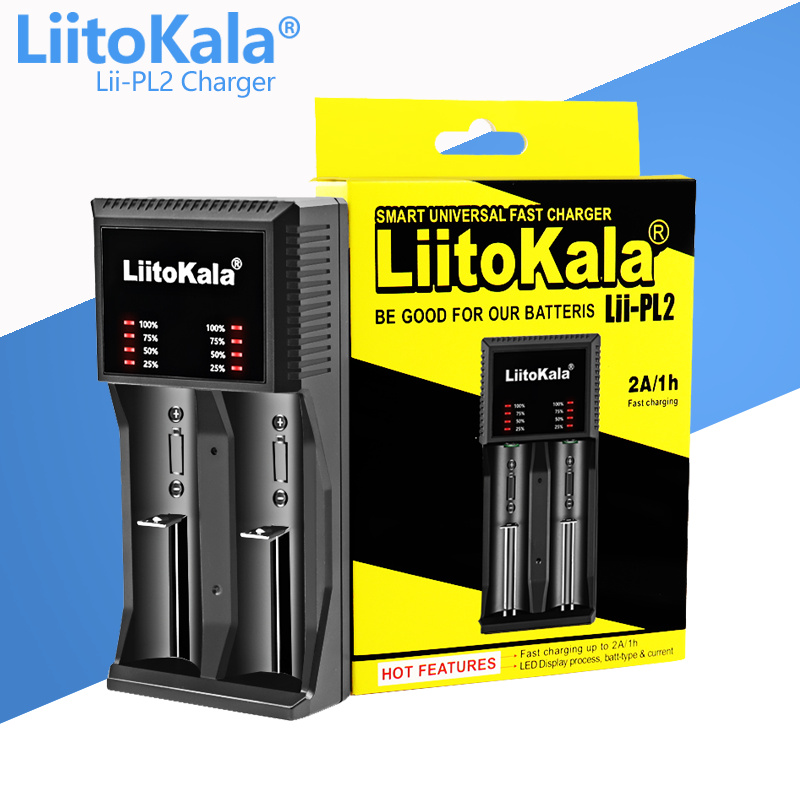

LiitoKala Lii-PL2 Charger
Specifications :
Brand: LiitoKala
Model: Lii-PL2
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output:
DC 4.20V for Li-Ion
DC 1.48V for NiMH / NI-Cd
Output Current(Selective):
Li-Ion: 2000mA*1(only one) , 1000mA*2
NiMH/NiCd: 700mA*2
Standby Current: <15mA
Compatible with:
Li-ion:26650/22650/18650/21700/2070018490/18350/17670
17500/17355/16340/14500/10440/AAA/AA/SC/S etc..
Ni-MH and NiCd:A, AA, AAA, SC
Brand: LiitoKala
Model: Lii-PL2
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output:
DC 4.20V for Li-Ion
DC 1.48V for NiMH / NI-Cd
Output Current(Selective):
Li-Ion: 2000mA*1(only one) , 1000mA*2
NiMH/NiCd: 700mA*2
Standby Current: <15mA
Compatible with:
Li-ion:26650/22650/18650/21700/2070018490/18350/17670
17500/17355/16340/14500/10440/AAA/AA/SC/S etc..
Ni-MH and NiCd:A, AA, AAA, SC
Product Detail
Features:
* This charger can only be filled with cylindrical lithium ion battery (3.7V), nickel-hydride/nickel-cadmium (1.2V.
* It Can automatically identify lithium (Li-ion 3.7V) battery and nickel metal hydride (Ni-MH) battery.
* Multiple safety protection functions such as overcharge, over discharge, short circuit, and reverse connection protection can automatically and automatically identify bad batteries.
* AC110-240V (50/60Hz) input (standard built-in power supply), four-slot independent charging and microcomputer management system.
* Charging current is intelligent automatic selection, there are 2 levels (1000mA/2000mA) for you to choose from, 2000mA is designated as the 1 slot.
* LED charging display lamp can display charging state 25%, 50%, 75%, 100%.
Specifications:
Brand Name: LiitoKala
Model Number: Lii-PL2
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output voltage:
DC 4.2V for Li-Ion
DC 1.48V for NiMH/NI-Cd
Output current:
Li-Ion: 2000mA*1, 1000mA*2
NiMH/NiCd: 700mA*2
Rechargeable battery specifications:
Li-ion: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C
LED display instructions:
After the charger is connected to the power supply, all the charging display LED lights will be on instantly. If the battery is not put into the charging slot, all the lights will be off.
When the detection of the battery, the power indicator light will flash type light, 4 indicators will also be according to the amount of electricity often appear should be the lamp, 4 lights on full, 4 lights at the same time flash battery abnormality.

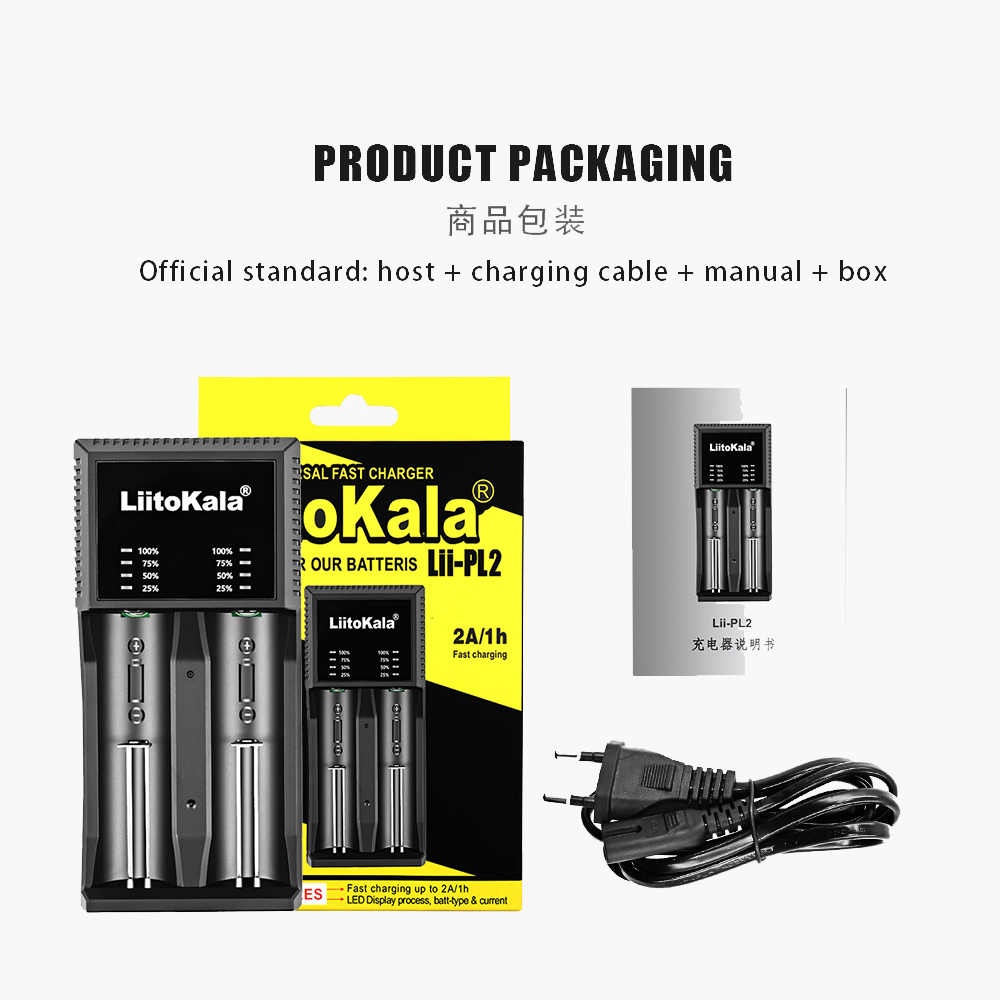

Package List:

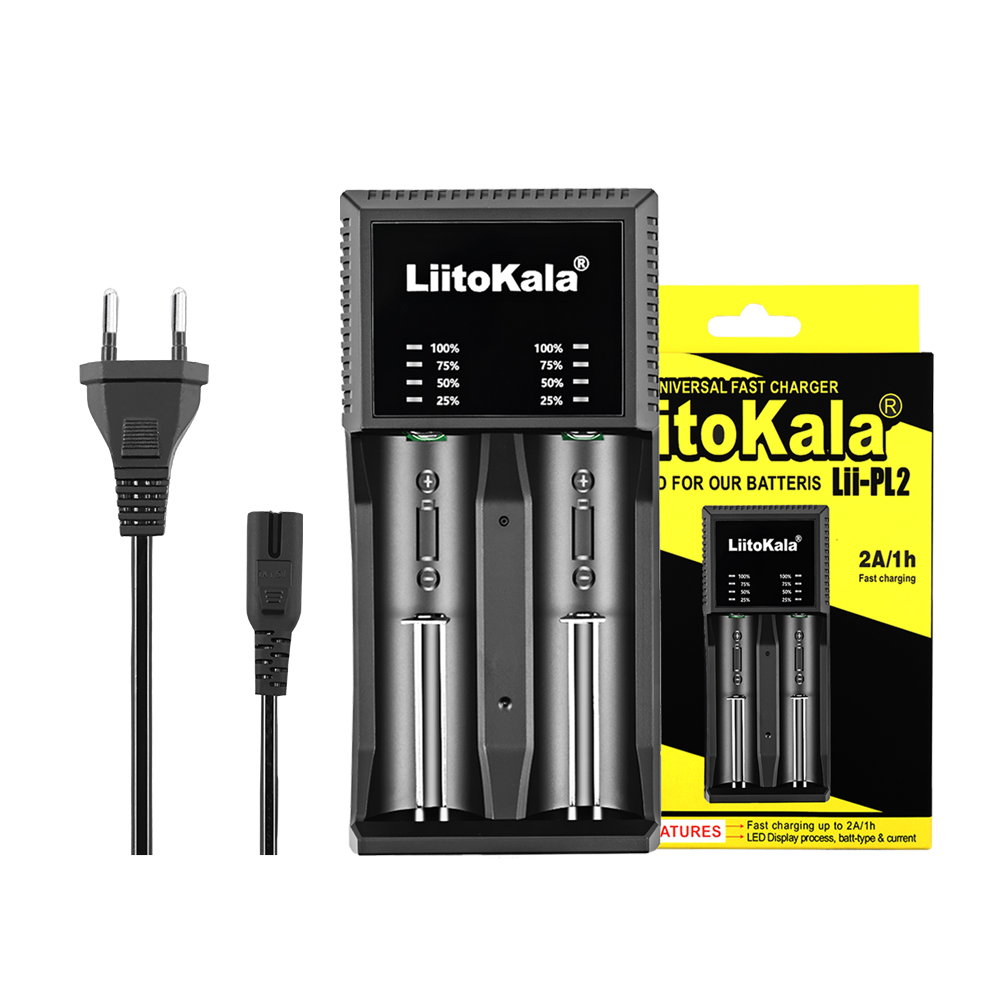

1 * LiitoKala Lii-PL2 Battery Charger
1 * AC charging line(EU/US/UK Plug)
1 * User Manual (English & Chinese)
CTNS:
Weight: 200g±1g

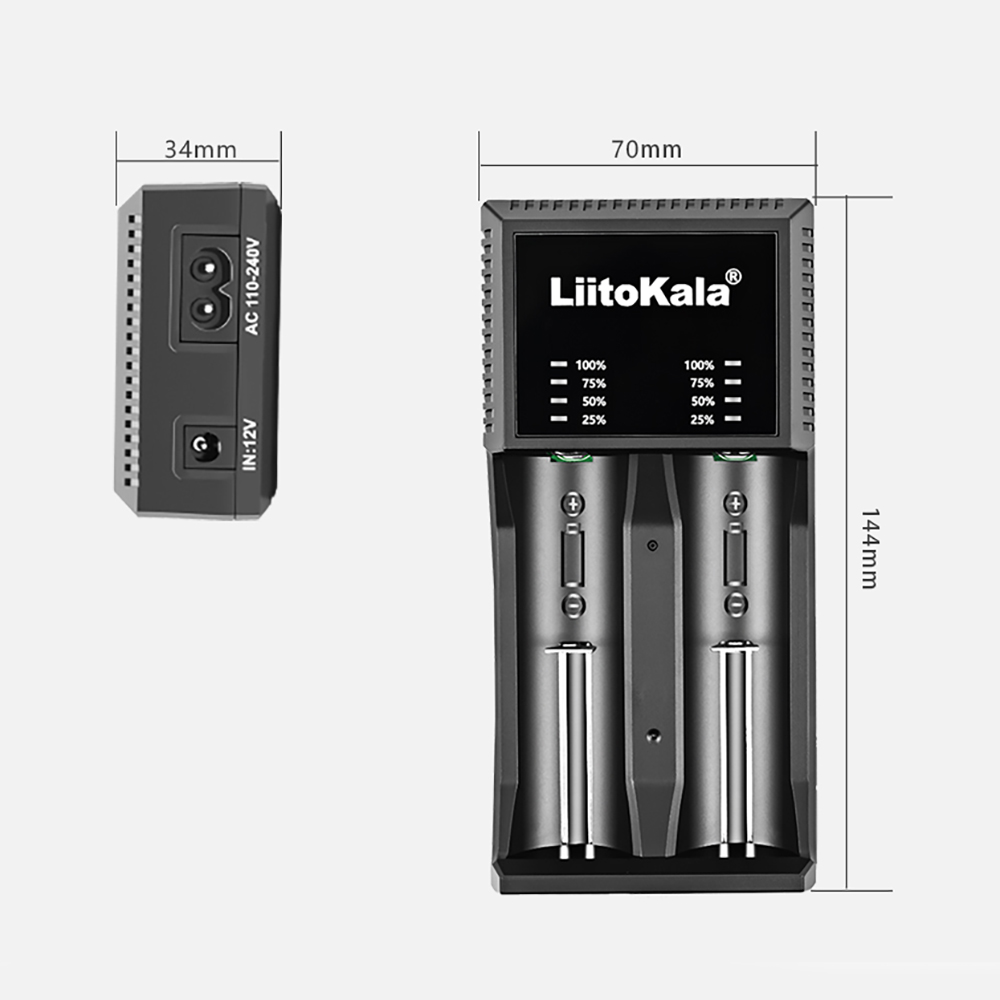

Charger Size: 147*107*35mm
Carton Size: 45.5*32*30cm
60pcs/box(12.5kg)
* This charger can only be filled with cylindrical lithium ion battery (3.7V), nickel-hydride/nickel-cadmium (1.2V.
* It Can automatically identify lithium (Li-ion 3.7V) battery and nickel metal hydride (Ni-MH) battery.
* Multiple safety protection functions such as overcharge, over discharge, short circuit, and reverse connection protection can automatically and automatically identify bad batteries.
* AC110-240V (50/60Hz) input (standard built-in power supply), four-slot independent charging and microcomputer management system.
* Charging current is intelligent automatic selection, there are 2 levels (1000mA/2000mA) for you to choose from, 2000mA is designated as the 1 slot.
* LED charging display lamp can display charging state 25%, 50%, 75%, 100%.
Specifications:
Brand Name: LiitoKala
Model Number: Lii-PL2
Input Voltage: AC 110-240V 50/60Hz; DC 12V/1A
Output voltage:
DC 4.2V for Li-Ion
DC 1.48V for NiMH/NI-Cd
Output current:
Li-Ion: 2000mA*1, 1000mA*2
NiMH/NiCd: 700mA*2
Rechargeable battery specifications:
Li-ion: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC, C
LED display instructions:
After the charger is connected to the power supply, all the charging display LED lights will be on instantly. If the battery is not put into the charging slot, all the lights will be off.
When the detection of the battery, the power indicator light will flash type light, 4 indicators will also be according to the amount of electricity often appear should be the lamp, 4 lights on full, 4 lights at the same time flash battery abnormality.
Package List:
1 * LiitoKala Lii-PL2 Battery Charger
1 * AC charging line(EU/US/UK Plug)
1 * User Manual (English & Chinese)
CTNS:
Weight: 200g±1g
Charger Size: 147*107*35mm
Carton Size: 45.5*32*30cm
60pcs/box(12.5kg)
