Description:

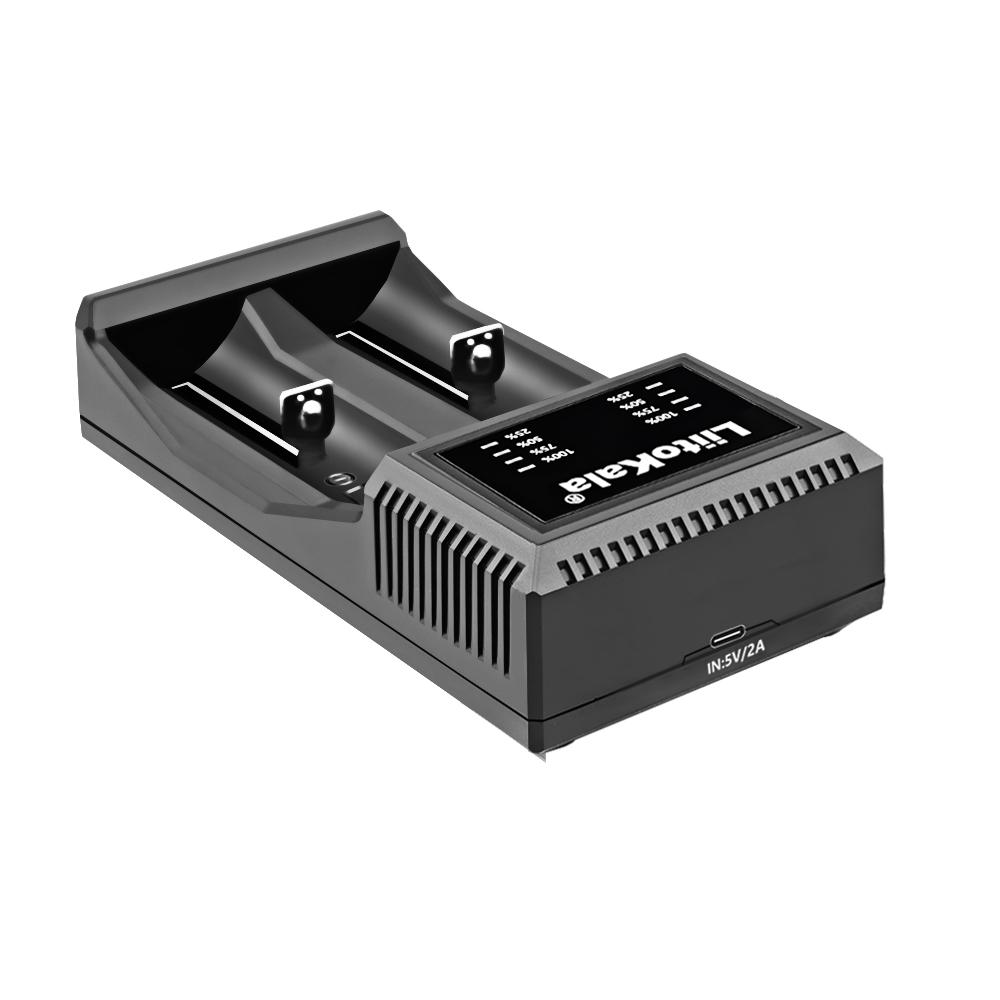

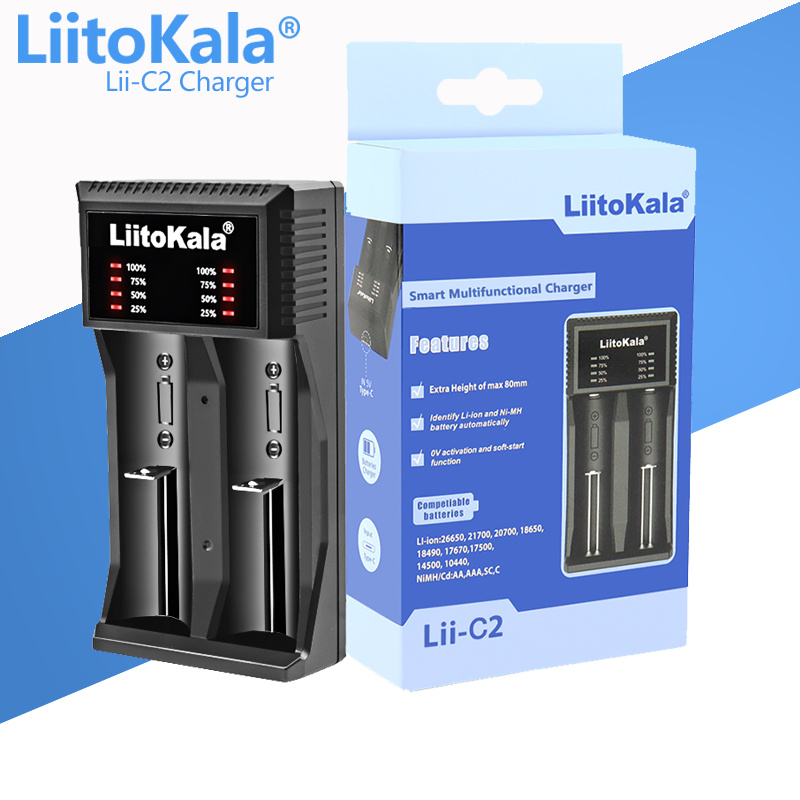

LiitoKala Lii-C2 is a smart universal charger that is capable of charging almost all Li-ion, Ni-MH, NiCd batteries. It can detect battery type and charge the battery automatically under your selected charging current.
The Lii-C2 features a Micro USB input port and a general USB output port. With LED indicators, you can read the charging process clearly. The built-in protection circuit allows you to charge your batteries without considering safety problems. Designed for portable, flexible and multifunctional, the LiitoKala Lii-202 is your smart assistant when you are at home or traveling.


Main Features:
2 independent charging channels with built-in micro-computer management system to ensure the high efficiency
Micro USB input; USB 5V 2A output port for charging your mobile phones
Two charging current options: 0.5A, 1A
Charging modes: constant current and voltage
LED indicators show the charging process and battery type
Detects battery type and charge the battery automatically under your selected charging current
Identifies broken batteries, 0V rechargeable battery activation, don't charge 1.65 - 1.85V batteries
Built-in protection circuit, with over-charge protection, over-discharge protection and short circuit protection

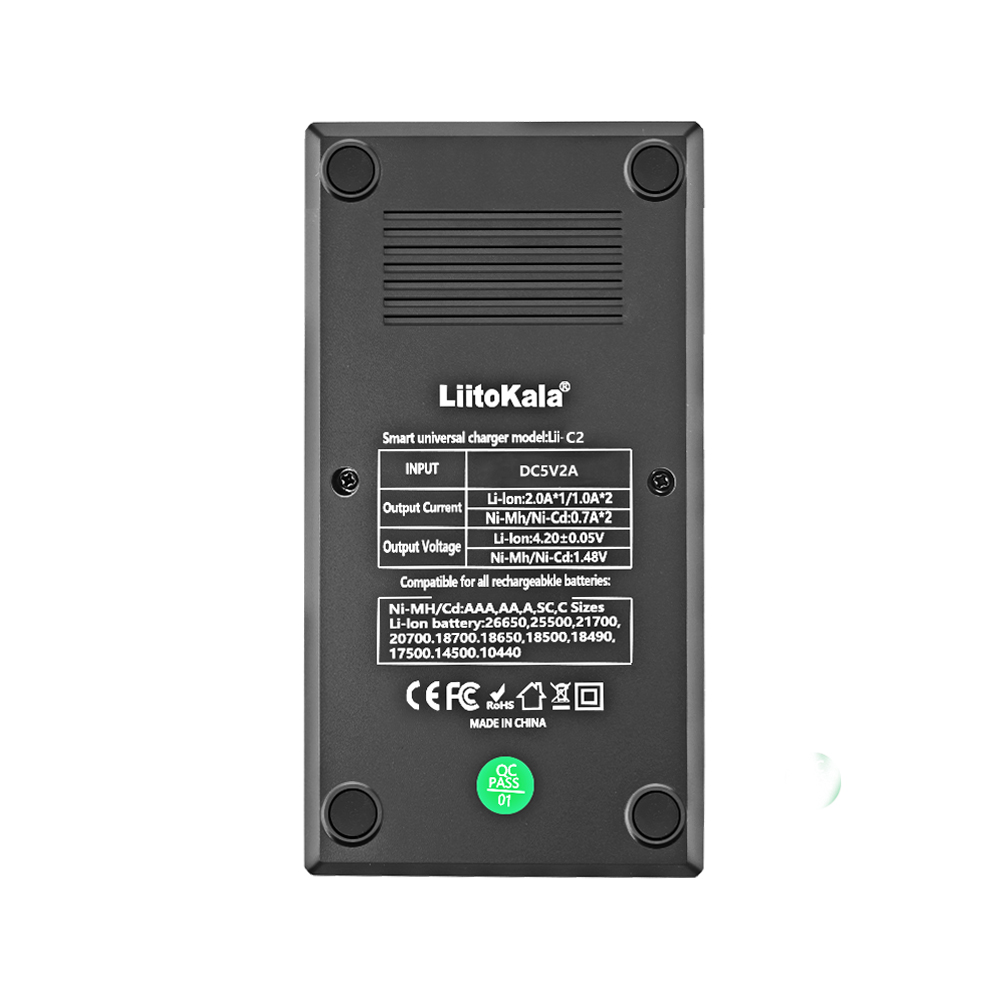

Parameters:
Compatible with:
Li-ion:10440, 14500, 16340, 17355, 17500, 17670, 18490, 18650, 22650, 26500, 26650
Ni-MH and NiCd:A, AA, AAA, SC
Input voltage:DC 5V
Input current:2A
Output voltage: 4.20V/1.48V
Output current:
Li-Ion:2000mA*1, 1000mA*2
NiMH/NiCd: 700mA*2
Constant current, constant voltage charging
cut-off current:<100mA;
Idle standby current:<15.0m A;


Specification :
1. Adopting 5V/2A input, 2-slot independent charging and microcomputer management system
2. The charging current is intelligently and automatically selected, with a total of 3 levels (700mA/1000mA/2000mA).
3. LED charging display light can display charging status by 25%, 50%, 75%, and 100%
4. It can automatically identify lithium ion (Li Ion 3.7V) batteries and nickel hydrogen (Ni MH) batteries.
5. It has a 0V voltage activation function, and cannot be charged between 1.65 and 2.20V (but there will be activated current trickle charging).
6. It has multiple safety protection functions such as overcharging, over discharging, short circuit, and reverse connection protection, and can intelligently and automatically identify faulty batteries;
7. Charging mode: constant current and voltage.


LED display instructions:
After the charger is connected to the power supply, all charging display LED lights will instantly turn on. If the battery is not placed in the charging slot, all lights will turn off.
When detecting the presence of a battery, the battery indicator light will flash, and the four indicator lights will also light up according to the amount of battery. The four lights will always light up to indicate full charge, and the four lights flashing at the same time will indicate abnormal battery conditions.

Note:
1. The charger can charge cylinder lithium ion batteries (3.7V and 3.8V), Ni-MH/Cd,
2. ferric phosphate lithium cell(LiFePO4)
3. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
4. 5V USB adapter (adaptor current 2A) is recommended
5. Cation heating while charging
6. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
7. For indoor use only
8. The displaying data for reference and refer to professional instrument for more accurate data

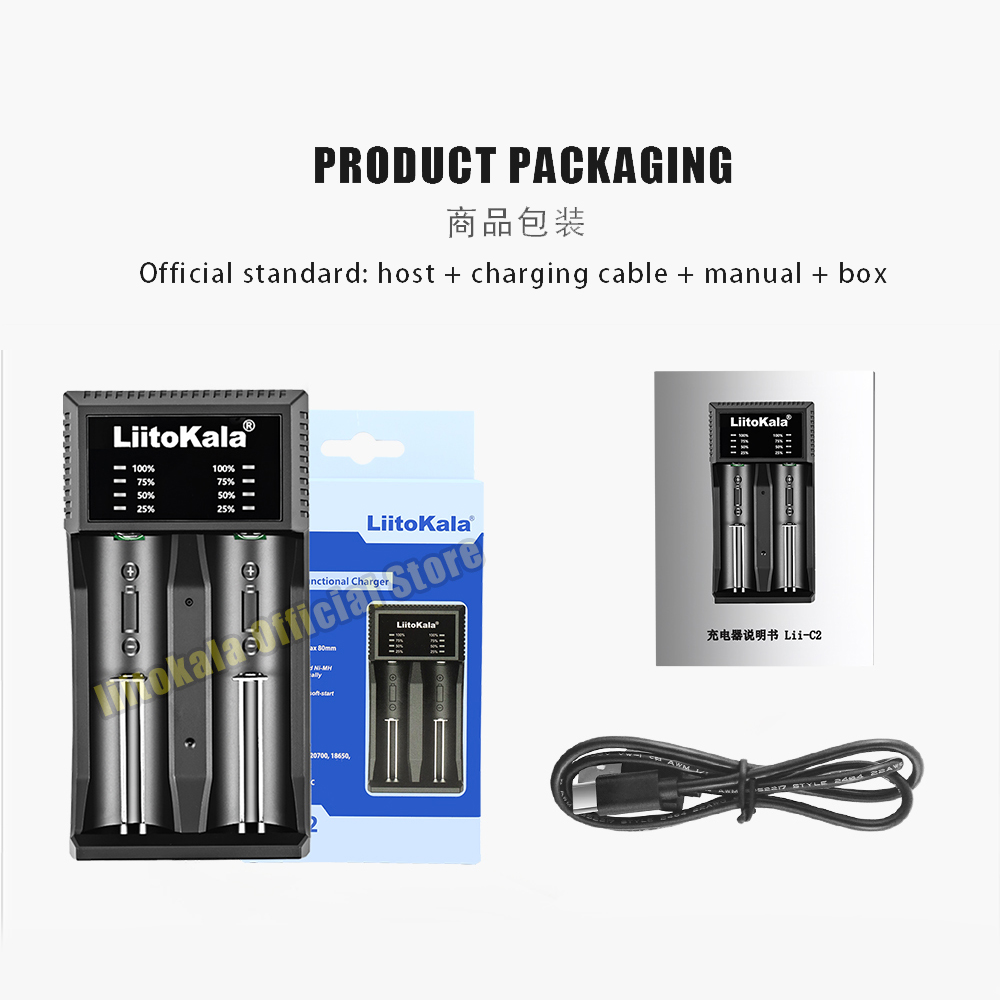

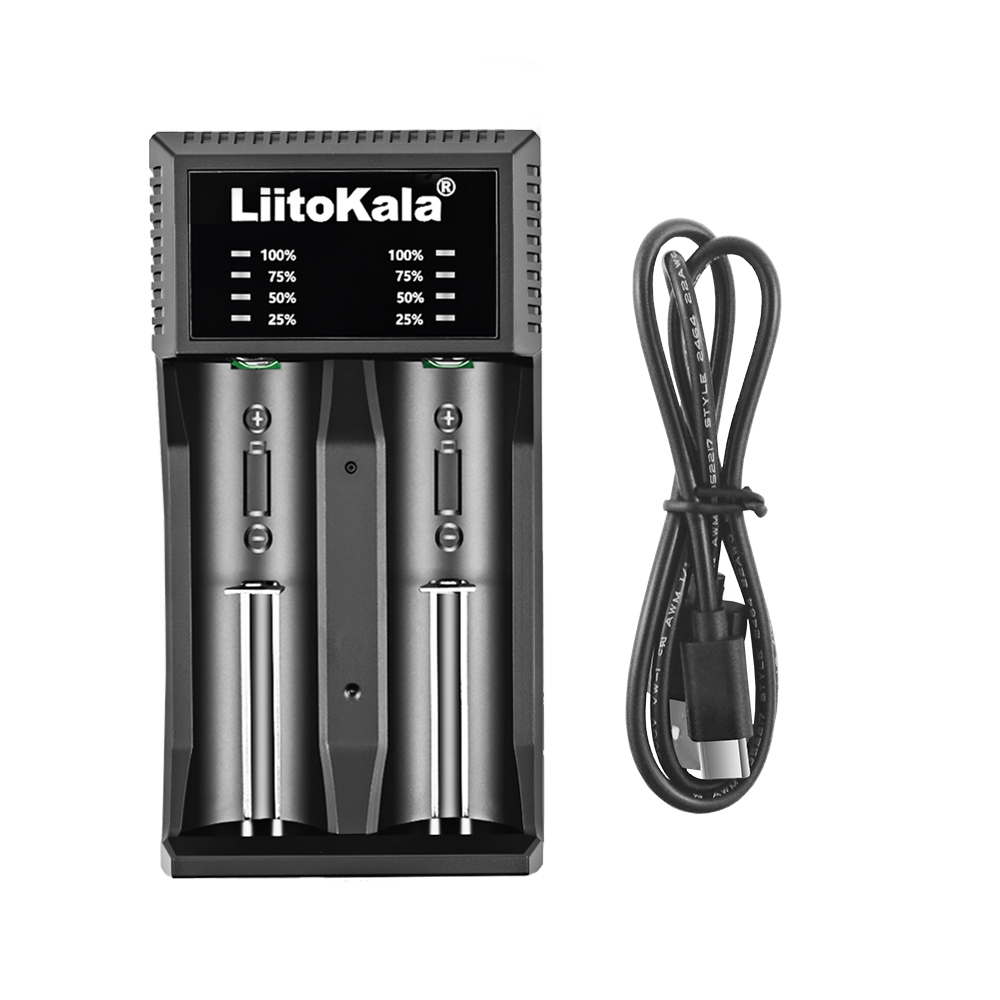

Packing list:
1 * Liitokala Lii-C2 charger
1 * Cable.
1 * Manual.

CTNS:
Weight:  120g±1g

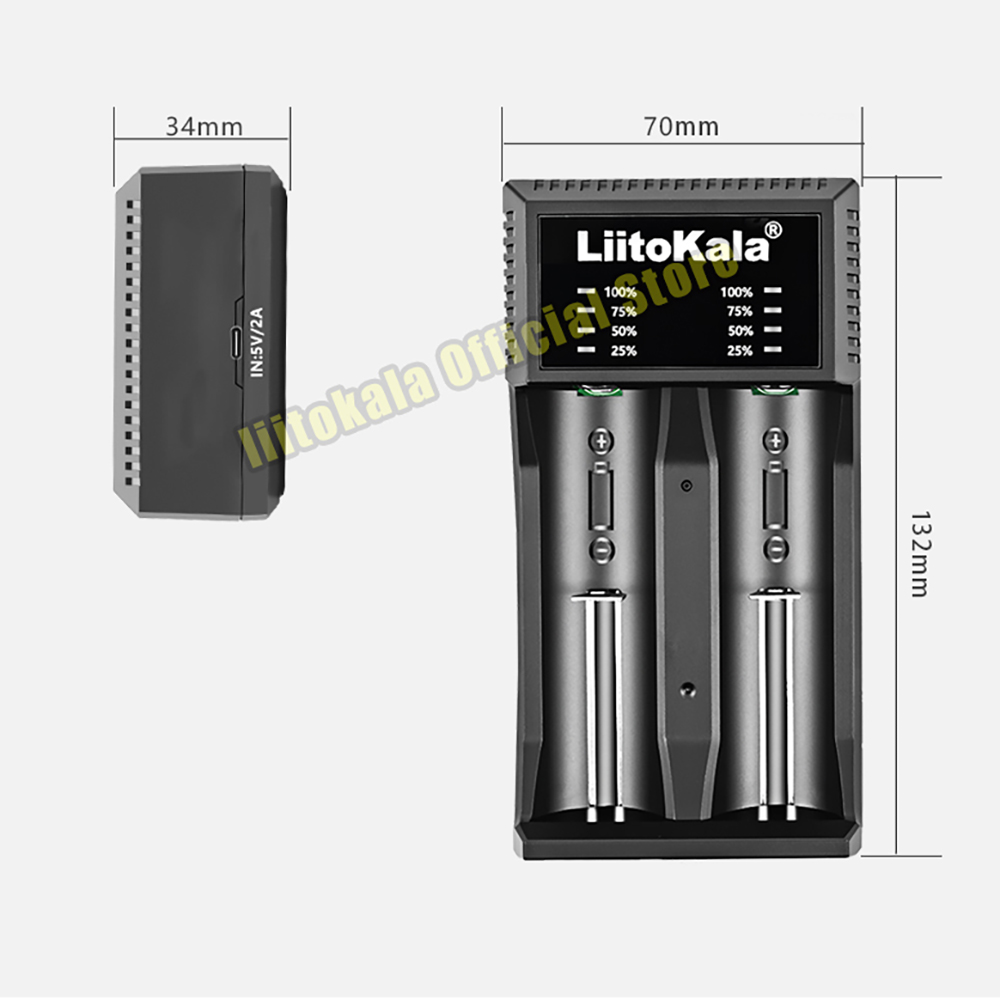

Charger Size: 132*70*34mm
Carton Size: 45.5*32*30cm
100pcs/box(12.5kg)
