Description:
Technology once again innovation, Auto-polarity detection. Do not need to distinguish the battery polarity. As long as the battery is rechargeable battery that can be charged. Do not worry about battery polarity reverse,Good Charger.
In addition to Auto-polarity detection there is a strong visible digi-dispaly. Visually beautiful. Function continues the Lii-100, very good.

Parameters:
Input: Micro USB DC 5V / 1A (min.)
Output voltage: DC 4.2V 500mA / 1000mA for Li-Ion
DC 4.35V 500mA / 1000mA for IMR
DC 3.65V 500mA / 1000mA for LeFePO4
DC 1.48V 500mA / 1000mA for NiMH / NI-Cd
Constant voltage charging with cut-off current less then 100mA
Standby current: No more than 15mA
Compatible for Batteries:
Li-ion / IMR / LiFePO4: 26650, 18650, 18490, 17700, 17500, 16340 (RCR123), 14500, 10440
Ni-MH / Cd: AA, AAA, A, SC, C size

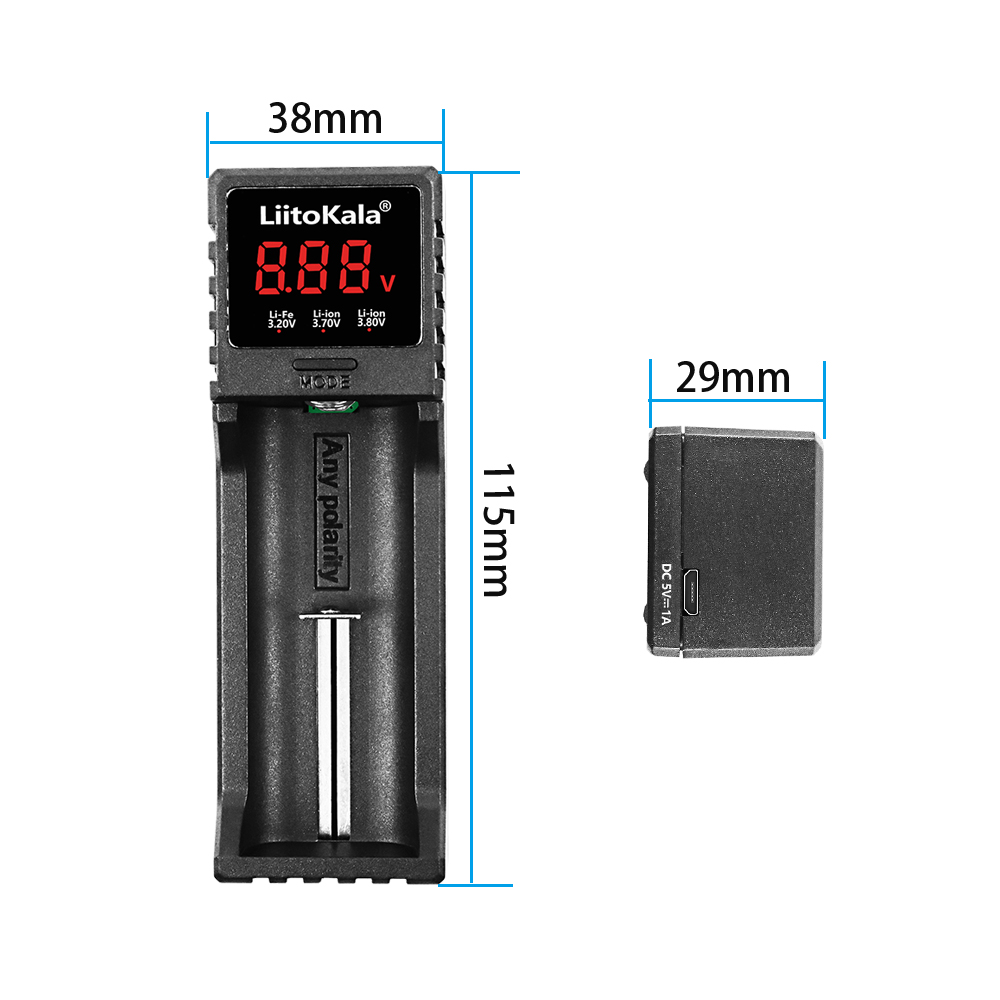

Size (mm) / Weight (grams):
Length 112mm x Width 37mm x Height 32mm


Specification :
1, One-slot charging and management system, Micro USB DC 5V input port
2, Battery polarity auto-detection (Any Polarity)
3, 500mAh / 1000mAh charging current for selection
4, Built-in digital tube indicator shows the real-time charging status of voltage and current
5, Identify Li-ion and Ni-MH battery automatically
Select manually by short-press the mode button for IMR battery (3.85V Li-ion) and LiFePO4 battery (3.2V)
6, Activation function for 0V battery of PCM protection.
7, Can not charge battery with 0.0 ≦ U <0.2V for NiMH / Cd and 1.6 ≦ U <2.2V for Li-Ion
8, Over-charging and over-discharge protection
9, Identify broken / defective battery
10, Charging under constant voltage and current


Note:
1. The charger can charge cylinder lithium ion batteries (3.7V and 3.8V), Ni-MH/Cd,
2. ferric phosphate lithium cell(LiFePO4)
3. Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
4. 5V USB adapter (adaptor current 2A) is recommended
5. Cation heating while charging
6. Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
7. For indoor use only
8. The displaying data for reference and refer to professional instrument for more accurate data

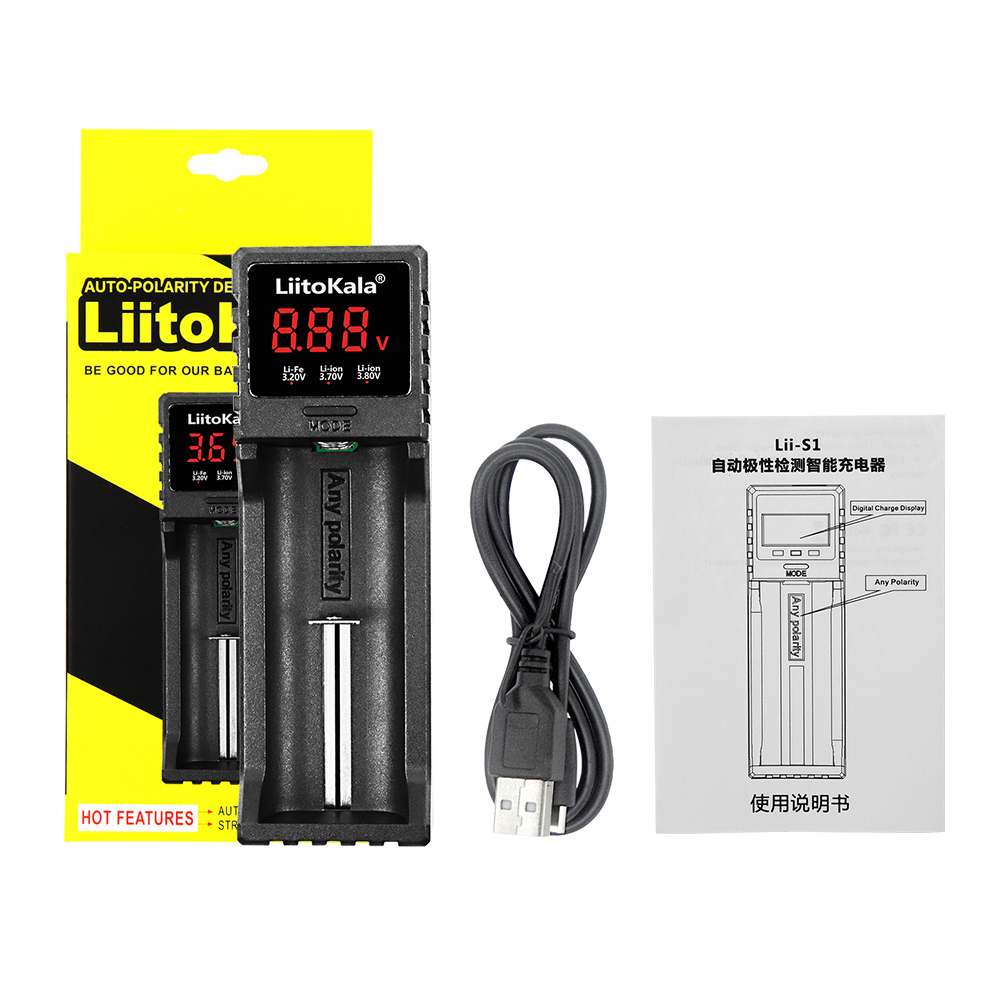

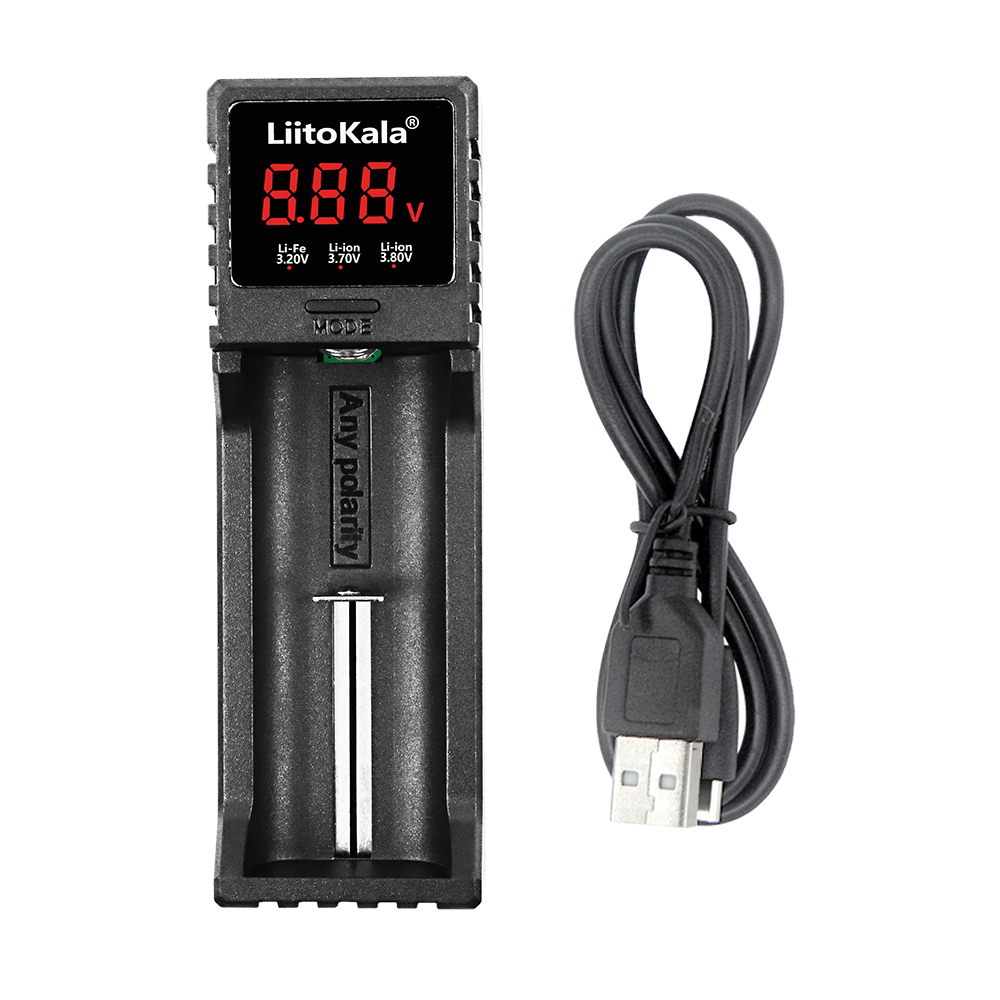

Packing list:
1*Liitokala Lii-S1 charger(not includ battery)
1 * Cable.
1 * Manual.

CTNS:
Weight:  80g±1g
Charger Size: 113*38*32mm
Carton Size: 38*25.5*31cm
100pcs/box(9kg)
