Specification

Discharge current: 100A
Charging current (same port): ≤60A
Main circuit conduction internal resistance: ≤5MΩ
Discharge overcurrent protection: 150A±10A

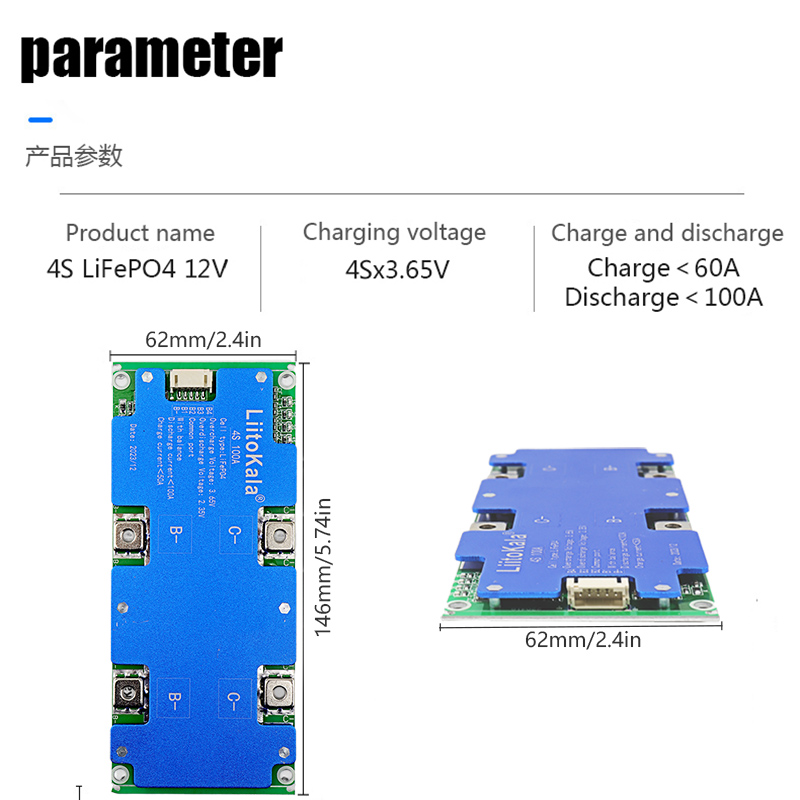

Product size: 145*60*8.36±1MM

Overcharge protection
Detection voltage: 3.65±0.025V
Detection delay time: 1000±500MS
Discharge voltage: 3.5±0.05V

Over discharge protection
Detection voltage: 2.35±0.1V
Detection delay time: 1000±500MS
Unwind voltage: 2.7±0.1V

Equalization parameters
Detection voltage: 3.5±0.025V
Detection delay time: 50±50MS
Equalization current: 30±5MA

Overcurrent protection
Detection voltage: 12.8±15MV
Detection delay time: 1000±500MS
Current protection: 100±10A

Short circuit protection
Trigger condition: external short circuit
Detection delay time: ≤300US
Release condition: disconnect the load

Temperature control protection
Charging high temperature protection detection temperature: 75℃
Discharge high temperature protection detection temperature: 75℃
Discharge condition: 65℃

Self-power consumption
Working power consumption: ≤40UA
Sleep over discharge power consumption: ≤10UA
Operating temperature range: -20/+80°C
