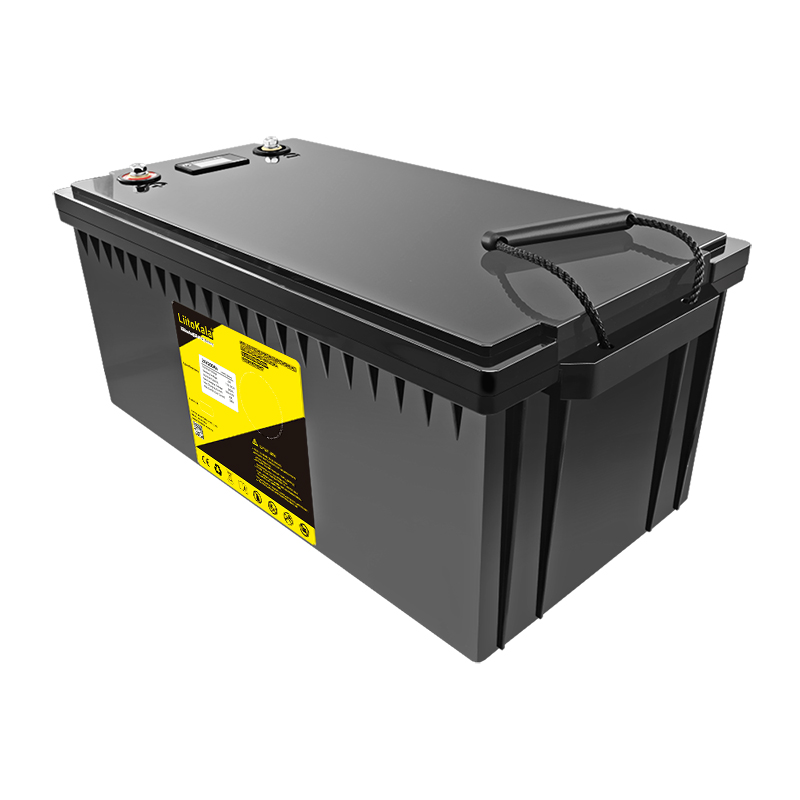

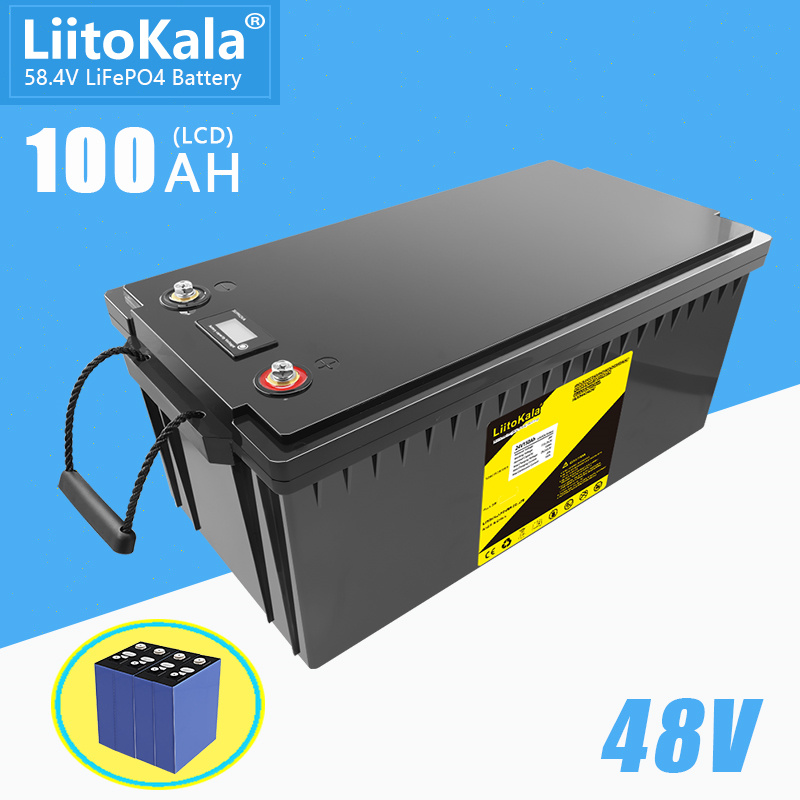

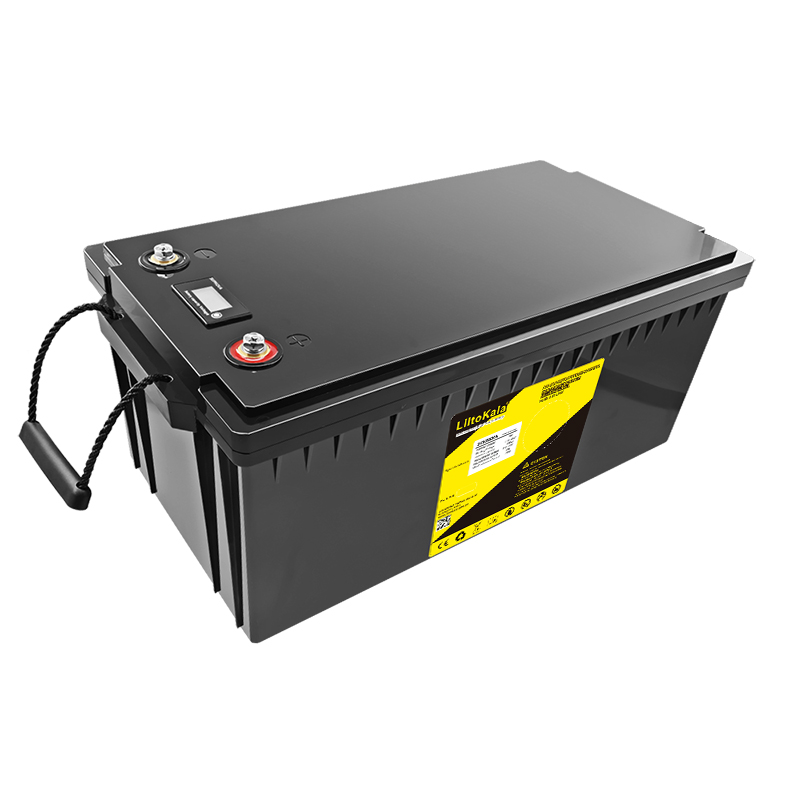

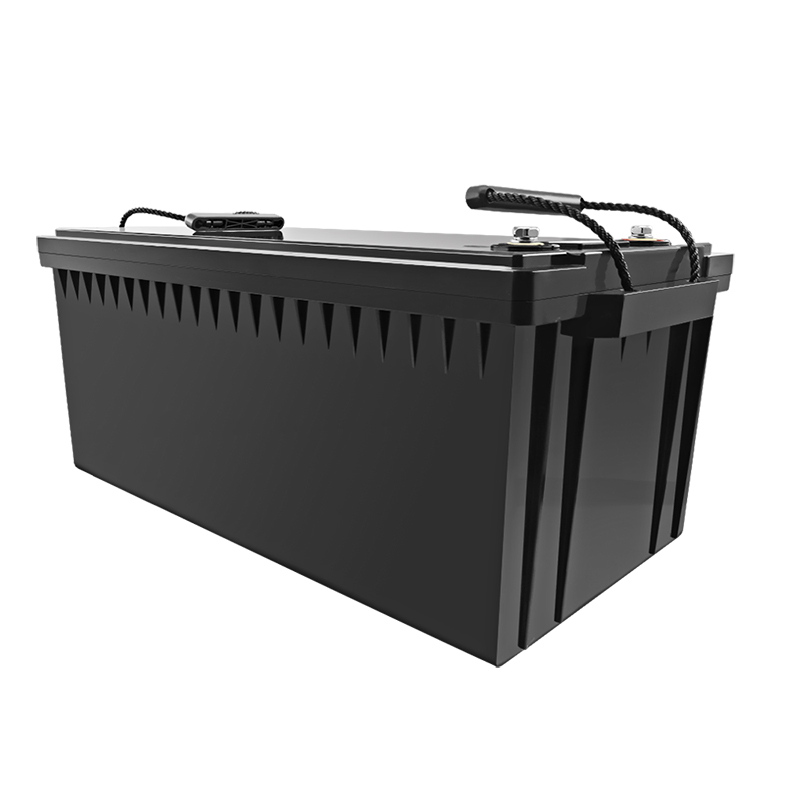

Product Details:
Brand: LiitoKala
Model: 48V battery pack
Nominal voltage: 48V(58.4V)
Nominal capacity: 100Ah
Maximum charging current: 20A
Instantaneous discharge current: 100A(2S)
Continuous discharge current: 50A
Life: 4000 cycles or more
Charging temperature: 0~45°C
Discharge temperature: -20~60°C
Storage temperature: -20~65 °C
Operating voltage range: 35.2V-58.4V
Overload protection voltage: 58.4V±0.05V
Protection voltage against overload: 35.2V±0.05V
Protect battery temperature: 60°C plusmn 5°C

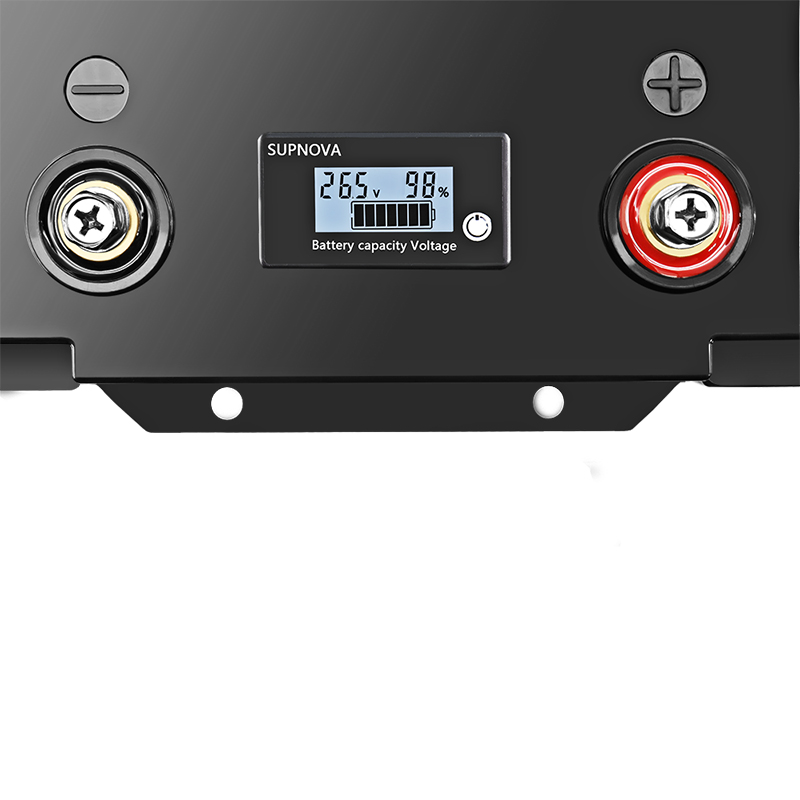

Output and parameters: high current positive / negative connection column (red positive, black negative);
Brand: LiitoKala
Model: 48V battery pack
Nominal voltage: 48V(58.4V)
Nominal capacity: 100Ah
Maximum charging current: 20A
Instantaneous discharge current: 100A(2S)
Continuous discharge current: 50A
Life: 4000 cycles or more
Charging temperature: 0~45°C
Discharge temperature: -20~60°C
Storage temperature: -20~65 °C
Weight:about 35kg (LiFePO4 battery)
Size: 520*265*220mm / customOperating voltage range: 35.2V-58.4V
Overload protection voltage: 58.4V±0.05V
Protection voltage against overload: 35.2V±0.05V
Protect battery temperature: 60°C plusmn 5°C
Output and parameters: high current positive / negative connection column (red positive, black negative);
